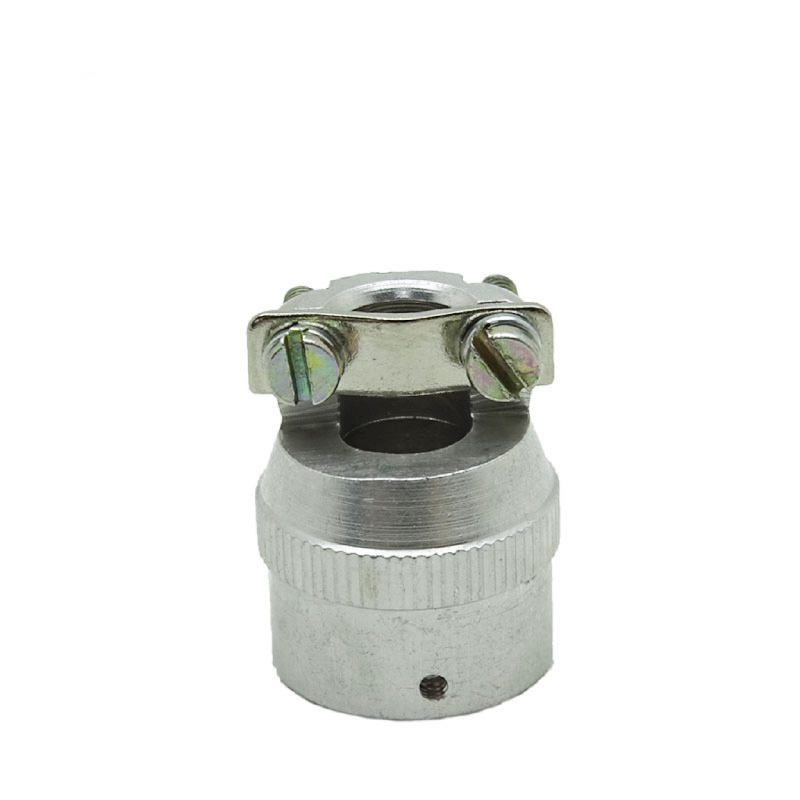

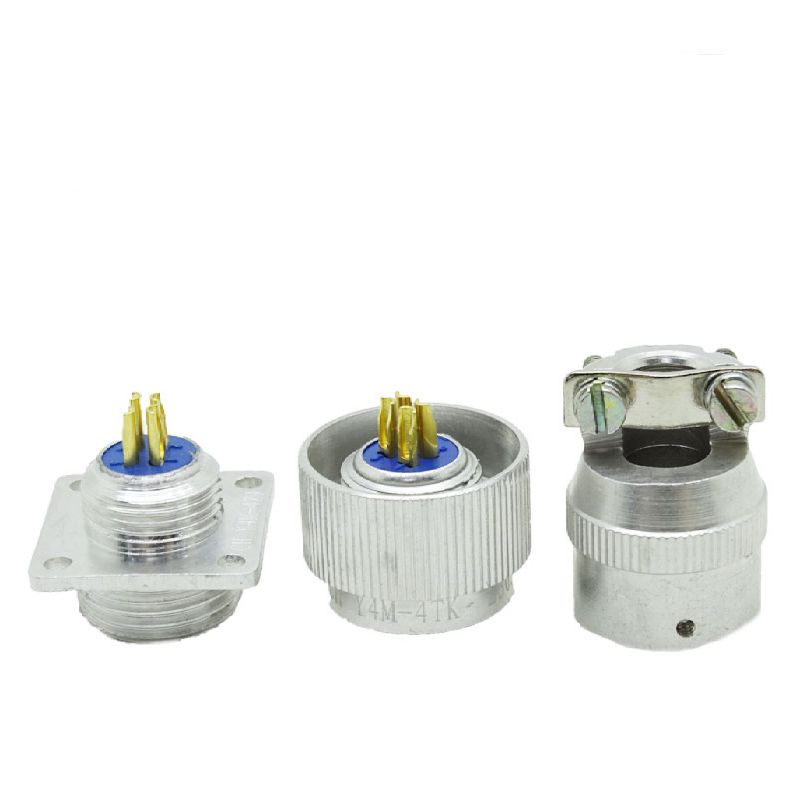

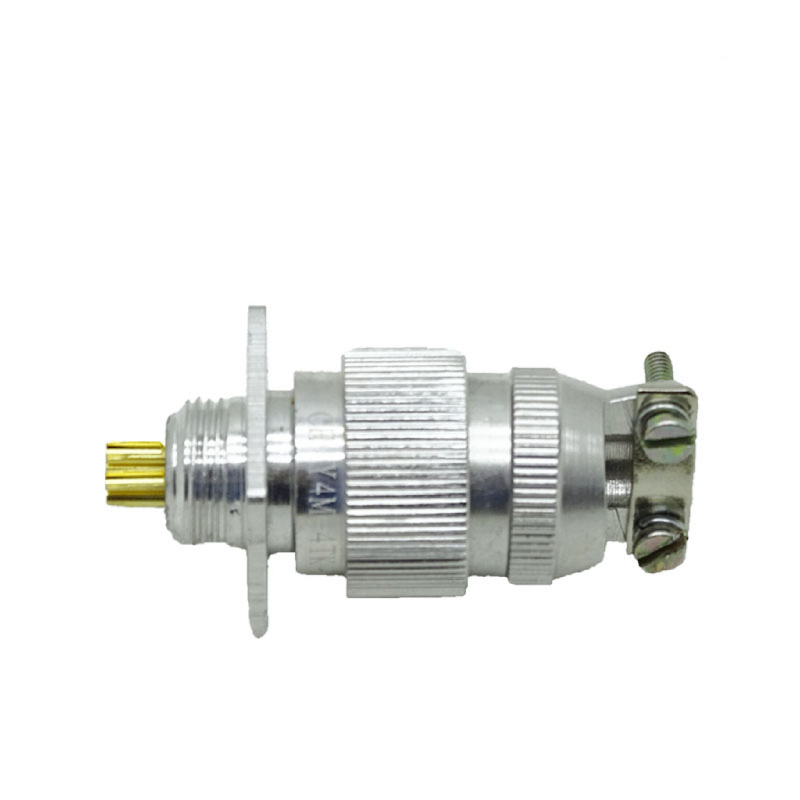

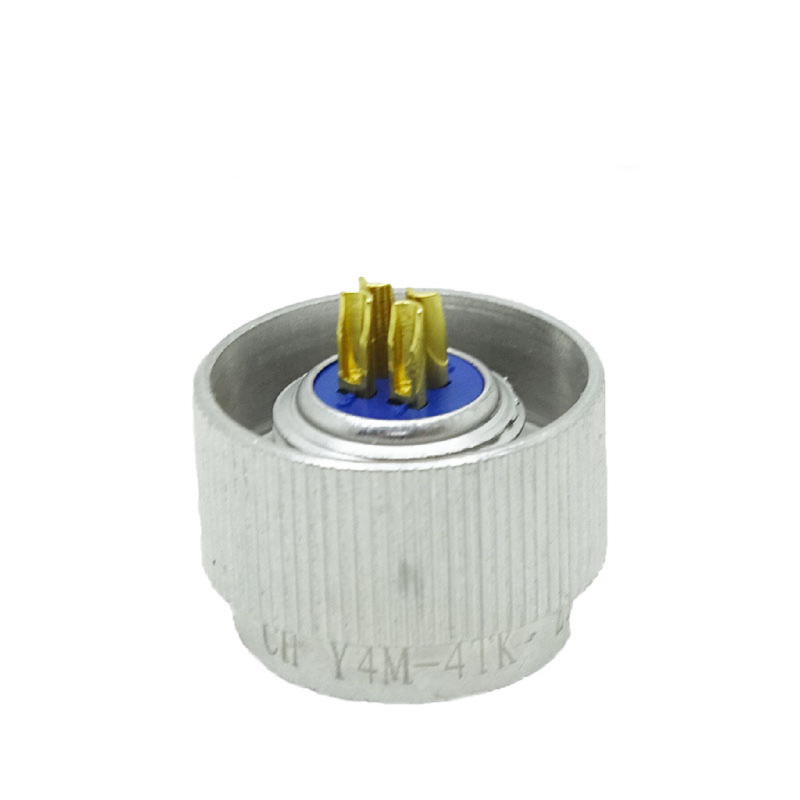

Y4 series plugs Y4M-4TK-2 sockets Y4M-4ZJ
This series of products are connected by threads, featuring small size, light weight, sealed sockets and easy operation. There are two installation methods: flange type and cable type.

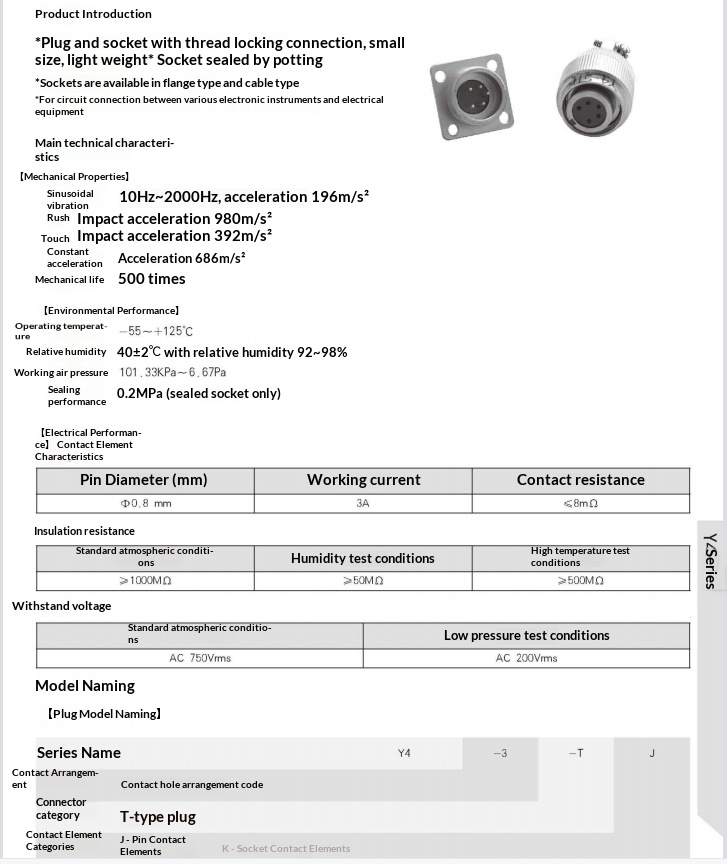

Main technical performance
【Environmental Performance】
Operating temperature: Welding type -55℃ to 125℃
Relative humidity: Up to 95% at 40℃
- Working altitude: 30,000 meters above sea level
Vibration: Frequency 10Hz to 2000Hz, acceleration 196m/s²
Impact: Acceleration 490 m/s²
Constant acceleration: 490 m/s²
- Airtightness: Air pressure resistance ≥ 0.2 MPa (only for sealed sockets)
【Mechanical Properties】
- Shell: High-strength aluminum alloy material
Coating: Oxidized natural color
- Insulator: Heat-resistant thermoplastic or thermosetting material
- Contact piece: Copper alloy material, gold plating.
- Sealing ring: Silicone rubber material
Mechanical life: 500 times
