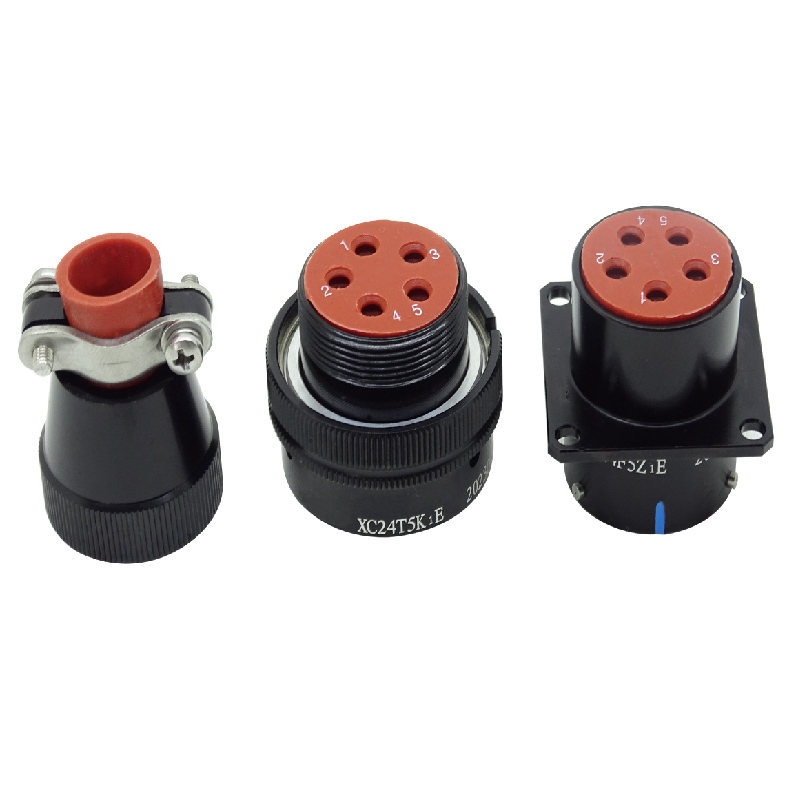

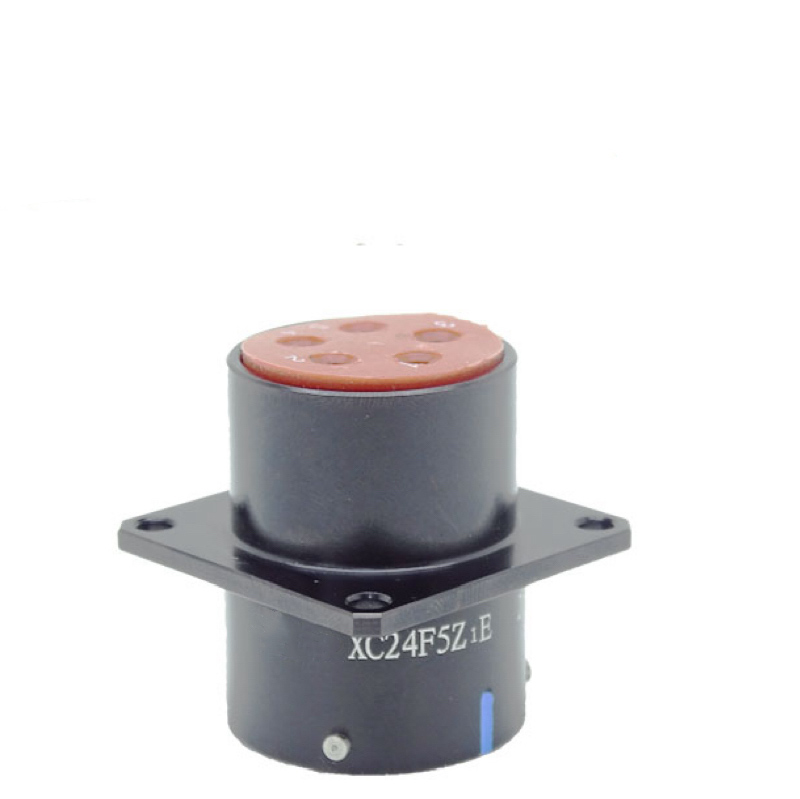

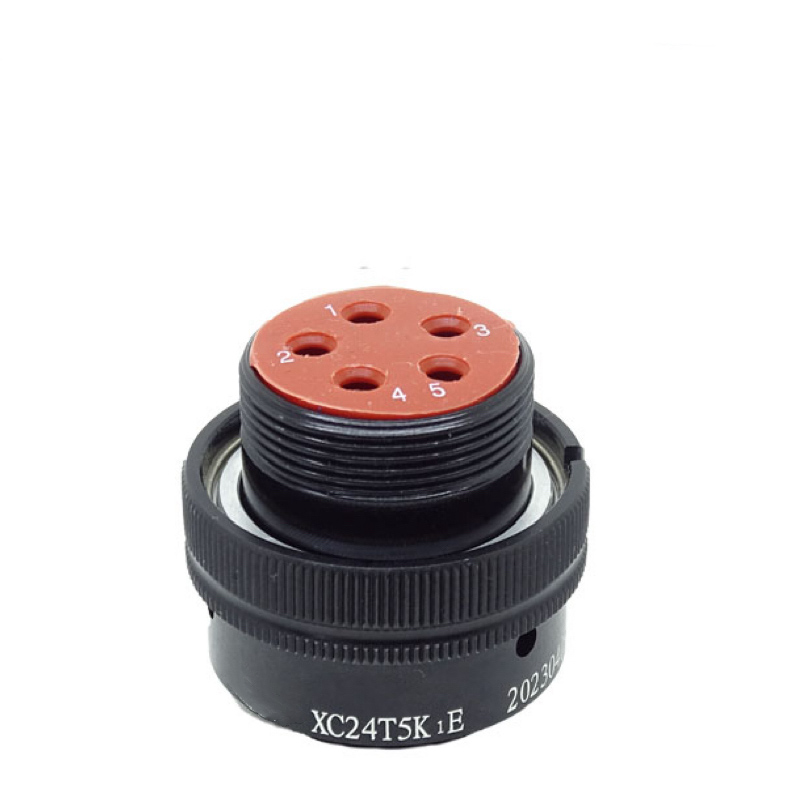

XC series connector plug XC24T5K1E socket XC24F5Z1E

Product Detail

The XC series of wire spring socket connectors include XC crimping, XCH welding, and XCB printed circuit board types.

This series of electrical connectors complies with the GJB2889 standard. They feature a bayonet quick connection and disconnection mechanism, which is convenient to operate, provides a reliable connection, and is resistant to vibration and shock. The housing is made of high-strength aluminum alloy. The contact pieces are available in both welded and post-release crimping types. They adopt a double-curved surface wire spring socket, offering features such as smooth insertion and extraction, low contact resistance, moisture resistance, salt spray resistance, mold resistance, and rain resistance. They are widely used in aviation, aerospace, marine, field communication, as well as in post and telecommunications, railways, computers, and various instruments and meters for circuit connection.

Environmental conditions for use

Operating temperature: -55℃ to +125℃, -55℃ to +200℃ (please specify when placing an order)

Relative humidity: 90% to 95% at 40℃ ± 2℃

Working altitude: 30,000 meters

Vibration: Frequency 10Hz to 2000Hz, acceleration 196m/s²

Air tightness: For the double-ended sealed socket, the pressure difference is 50.7 kPa, and the leakage rate is ≤ 46 Pa·cm³/s.

Constant acceleration: 980 m/s²

Impact: Acceleration 980 m/s²

Mechanical life: Plug and unplug ≥ 1000 times
