Y11 Circular Electrical Connector: Quick Connect/Disconnect Plug Y11P-0804TK2-B Socket Y11P-0804ZJ10-B
The Y11 series circular electrical connectors comply with the GJB101A-1997 standard and are suitable for use in aerospace satellite systems, aviation, marine and transportation tools, ground launch and receiving systems, high-energy and high-temperature industrial systems, communication and testing systems, industrial and transportation power systems, etc. for electrical signal connection. This product is an internal bayonet locking circular electrical connector with many advantages such as quick connection and disconnection, small size, and light weight. The contacts are welded, and the shells are available in shielded and unshielded types, with sealing, dust-proof and rain-proof performance. The installation methods include flange type, nut tightening type, and through-wall type, etc.

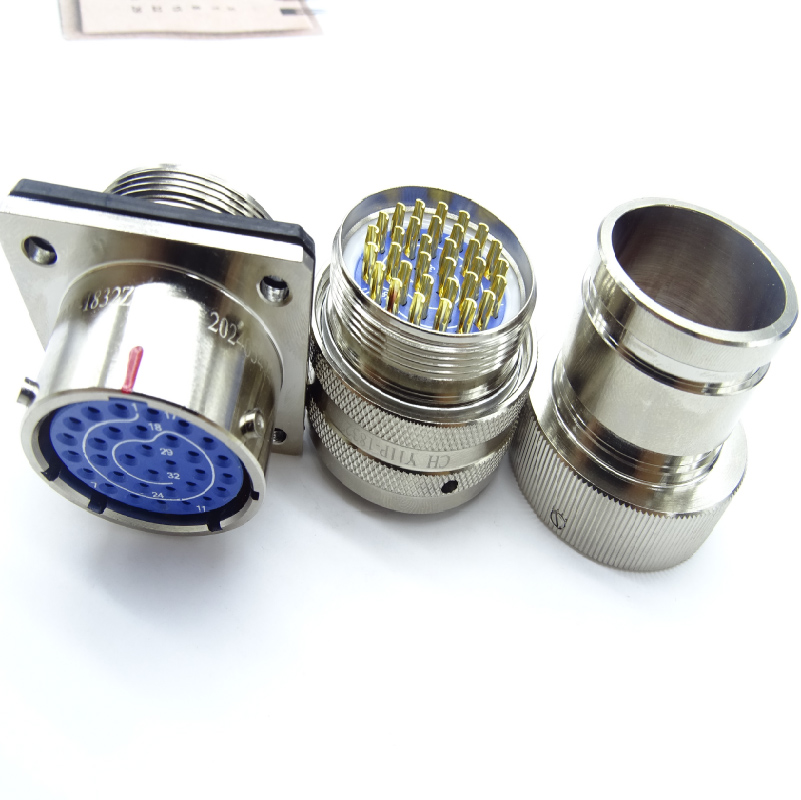

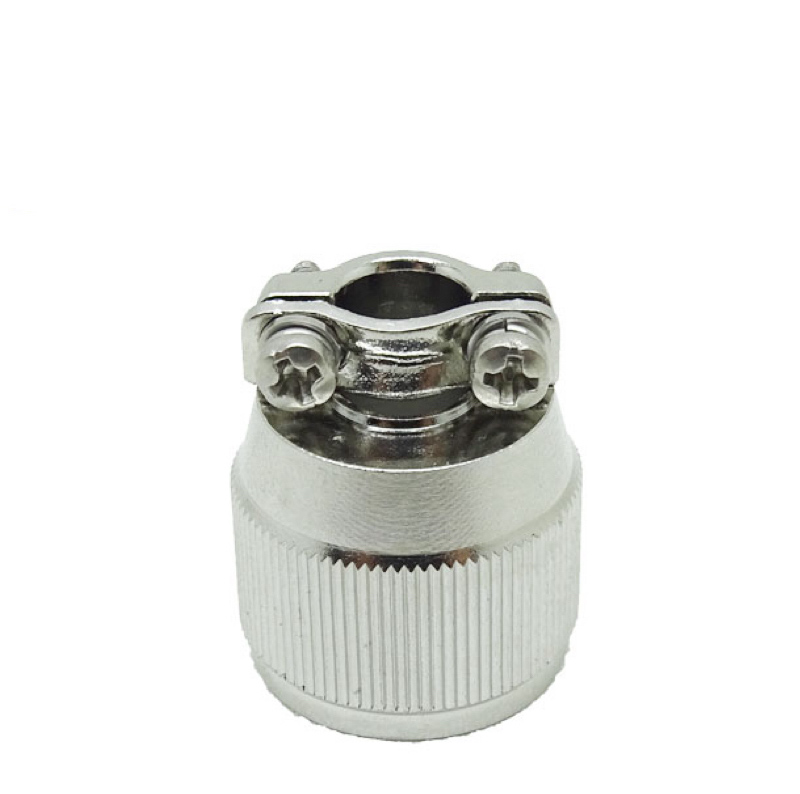

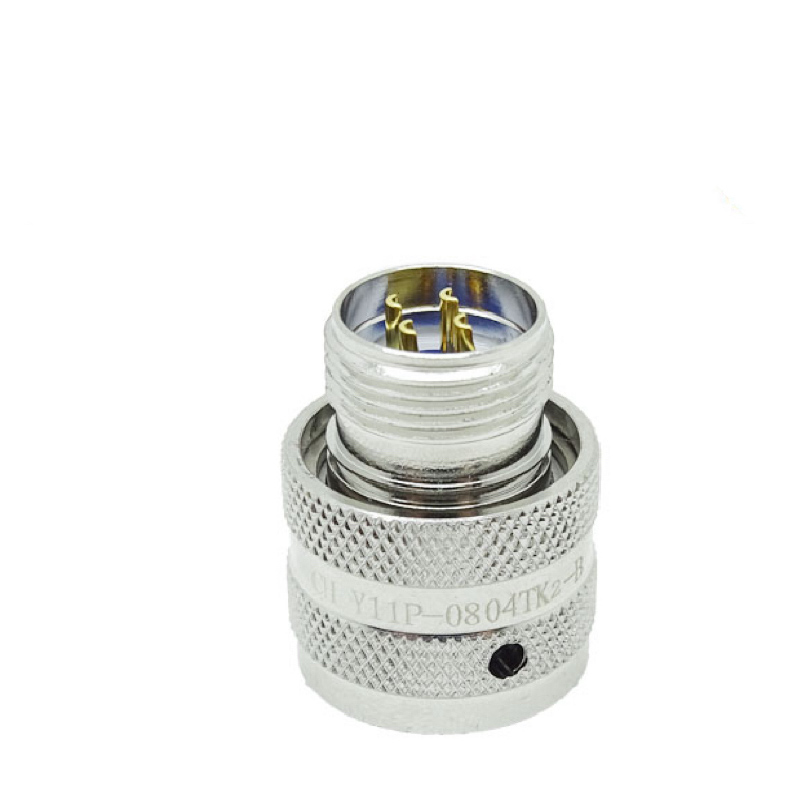

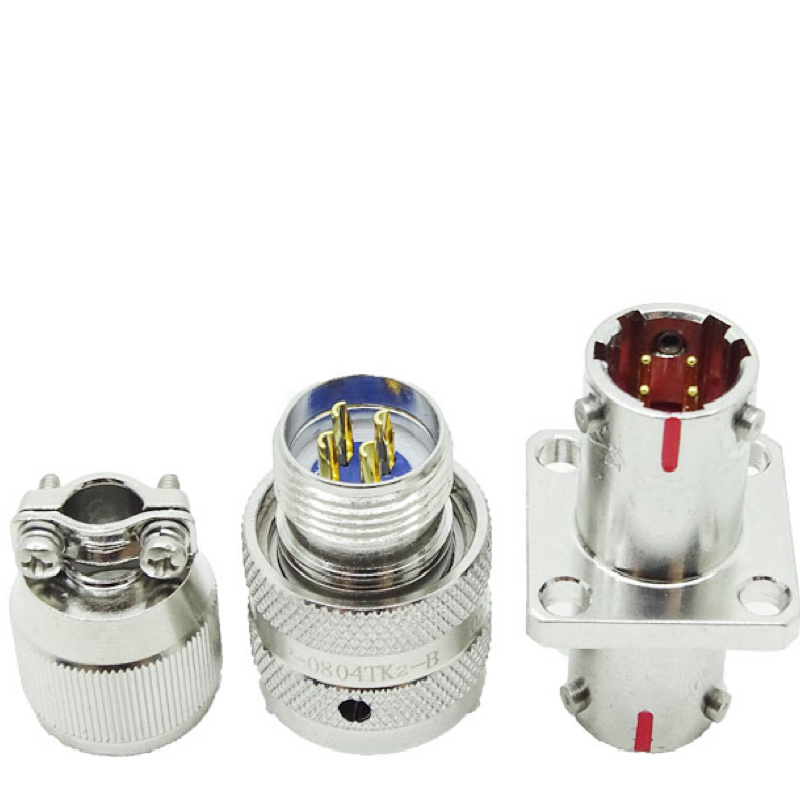

This picture shows the plug Y11P-0804TK2-B and the socket Y11P-0804ZJ10-B, which are standard 4-core connectors with 08 shell type and tail, made of stainless steel.
Environmental conditions for use
Operating temperature: -55℃ to +125℃
Relative humidity: 90% to 95% at 40℃ ± 2℃
Working pressure: 101.33 Kpa to 1.33 Pa
Sinusoidal vibration: 10 to 50 Hz, double amplitude 2 mm
Acceleration: 196 m/s² at 50 to 2000 Hz
Random vibration: Power spectral density is 40 m²/s⁴Hz
The root mean square value is 239.1 m/s.
Impact: Acceleration 980 m/s²
Rainproof: Rainfall rate 5mm/min
Electrical continuity between enclosures: not more than 0.2 Ω
Electrical continuity between shielding enclosures: not greater than 0.005 Ω
Electromagnetic interference: At 800 MHz, attenuation is 45 dB.
Sealing performance: 0.2 Mpa (socket)
Mechanical life: Plug and unplug ≥ 500 times
