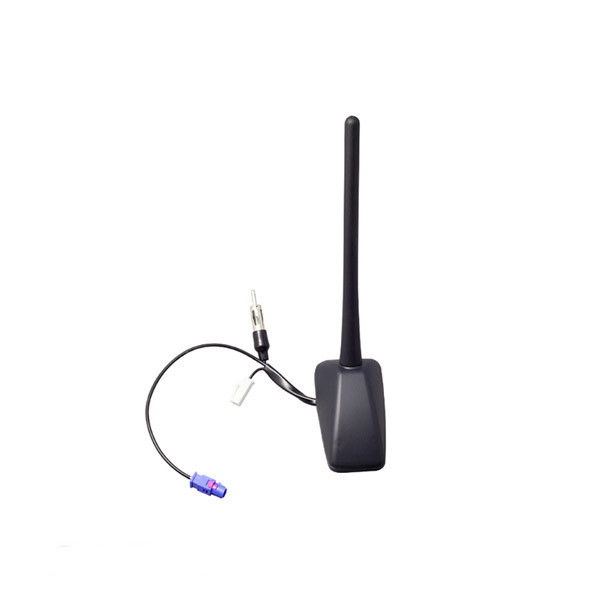

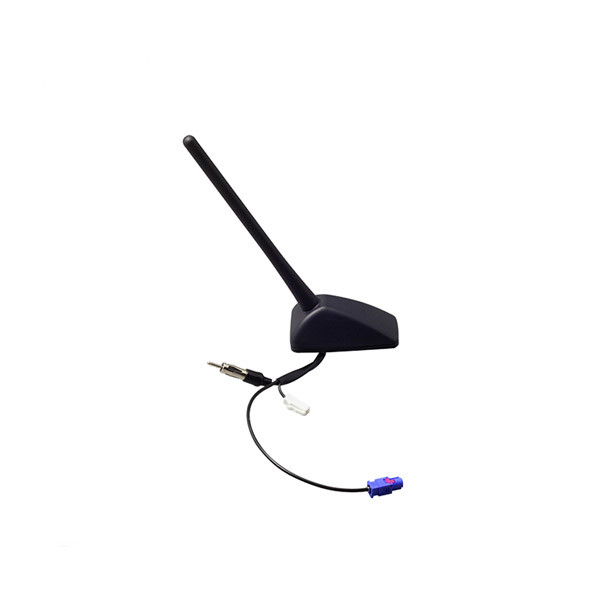

Shark Fin 1575.42MHz Car Radio Antenna With SMA-C-J3 Connector

Product Detail

Shark Fin Antenna Car Radio Antenna AM FM DAB GPS Radio Signal Aerial


Product Description


Frequency Range:(1575.42±1.023)MHz
Noise Quotiety:≤1.5dB
Output Impedance:50Ω
Out-of-band rejection:≥40dB @ fo-100MHz ≥28dB@ fo+100MHz
Working Voltage:DC(+3.3~+5)V
Working Current:≤30mA(@+3.3V)
Input Connector:SMA-C-J3


AM/FM Electrical Paramete


requency Range: AM (520~1710)KHz FM (88~108)MHz
FM Syntony Range:(98±3 )MHz
Output Impedance:75Ω
Input Connector:VW-k


Other Parameter


Antenna sixe Base:(94×52×34)mm
Antenna sixe ROD:180±5mm
Cable Length:RG174(GPS) SYV-75-3(AM/FM)
Working Temperature:(-40~+90)℃
Storage Temperature:(-40~+105)℃


Suction Cup GSM Antenna For Car / Truck / Boats to Improve Cell Phone Voice & Data Reception
Low V.S.W.R. / Low Loss Design / High Gain
Higher the Antenna gain, the signal amplification better.



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
