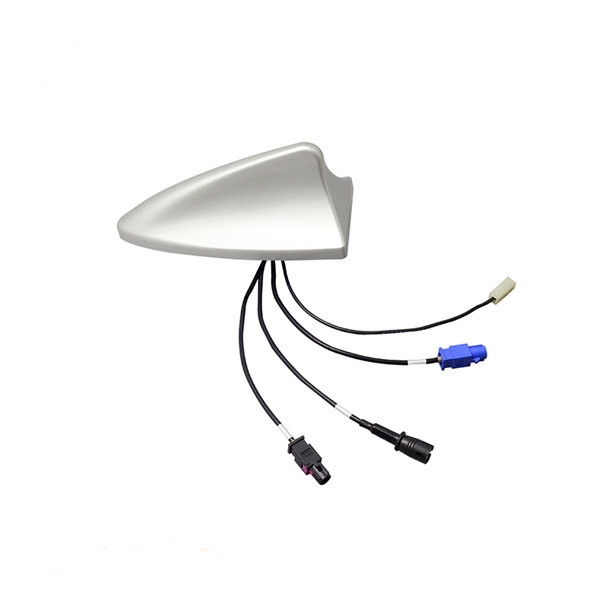

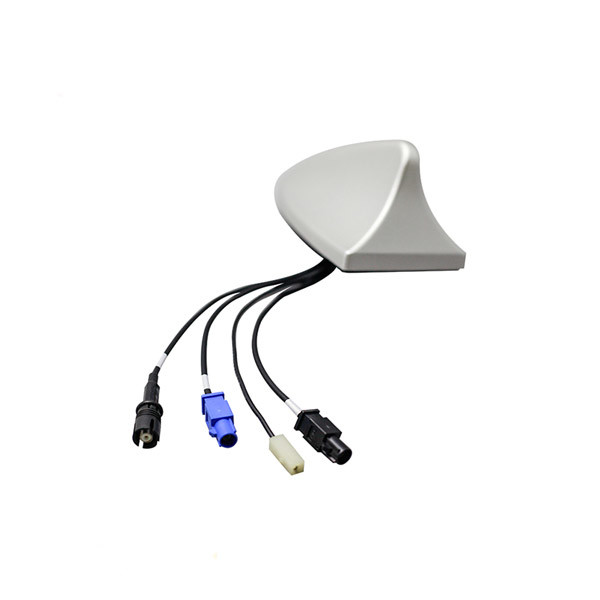

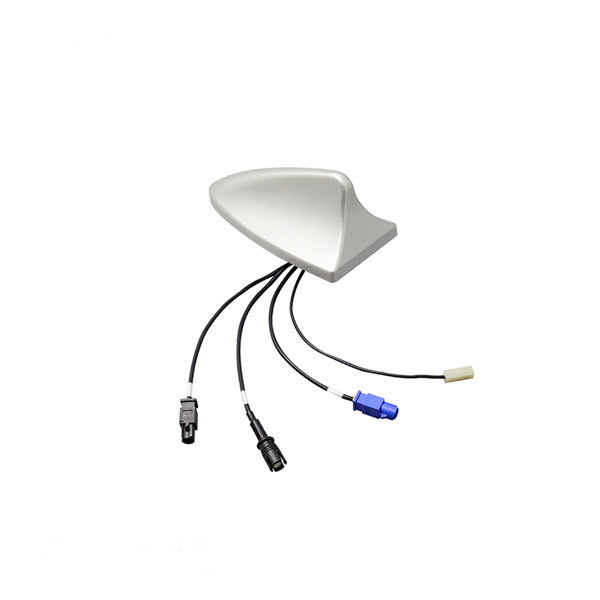

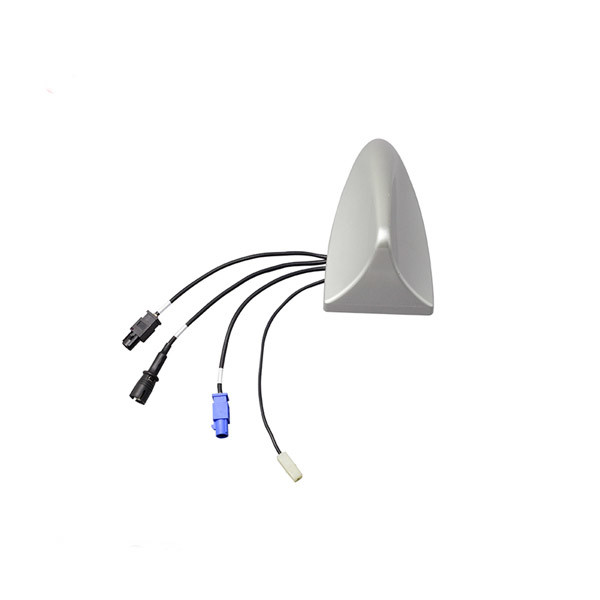

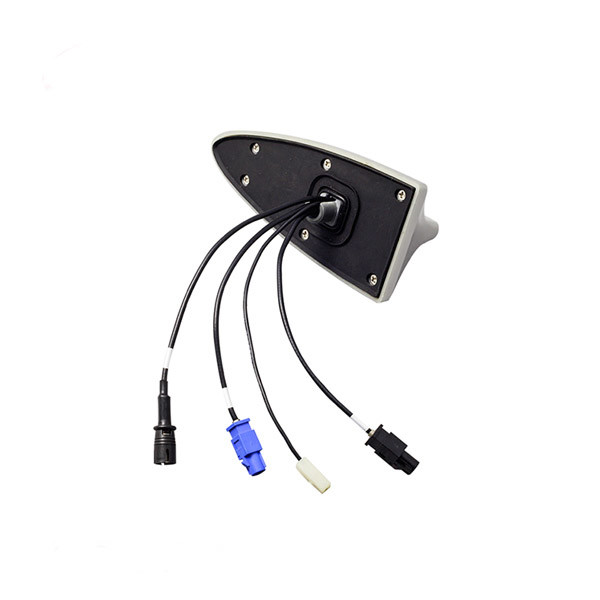

CE ROHS Mini 1575.42MHz 28dbi Active External Car GPS Antenna

Product Detail

Gps Antenna CE ROHS Mini 1575.42Mhz 28dbi Active External Car GPS Antenna



Product Description



Frequency Range:(1575.42±1.023)MHz
Gain:28±3dB
Pass band Ripple:≤2.0
Polarization:RHCP
VSWR:≤2
Noise Factor:≤1.5dB
Out of band attenuation:≥40dB @ fo-100MHz ≥28dB@ fo+100MHz
Power:DC+3.3~+5V( Coaxial Feed)
Current:≤30mA(@+3.3V)
Input Connector:SMA-J3(Optional)
Frequency Range:AM(520~1710KHz)/FM(88~108MHz)
LNA Gain:AM (-5±5dB)/ FM(15±2 dB)



AM/FM Antenna Electrical Parameter



Frequency Range:AM(520~1710KHz)/FM(88~108MHz)
LNA Gain:AM (-5±5dB)/ FM(15±2 dB)
VSWR:≤4.5
Noise Voltage:AM≤-6 dBμV/ FM≤0 dBμV
Power:DC +9~+16V
Current:≤50mA(@+12V)
Input Connector:VW-F(Optional)



Other Parameter



Dimensions of ANT:Dimensions of ANT
Cable:RG174(GPS) SYV75-2(AM/FM)
Weight:85±2g
WorkingTemperature:(-40~+85)℃
Storage Temperature:(-40~+90)℃



GSM antenna product introduction: the function of sucker antenna is to radiate and receive radio waves.
When installing and using sucker antenna, pay more attention to stay away from obstacles and straighten the lead,
so as to better send and receive signals and achieve communication distance

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
