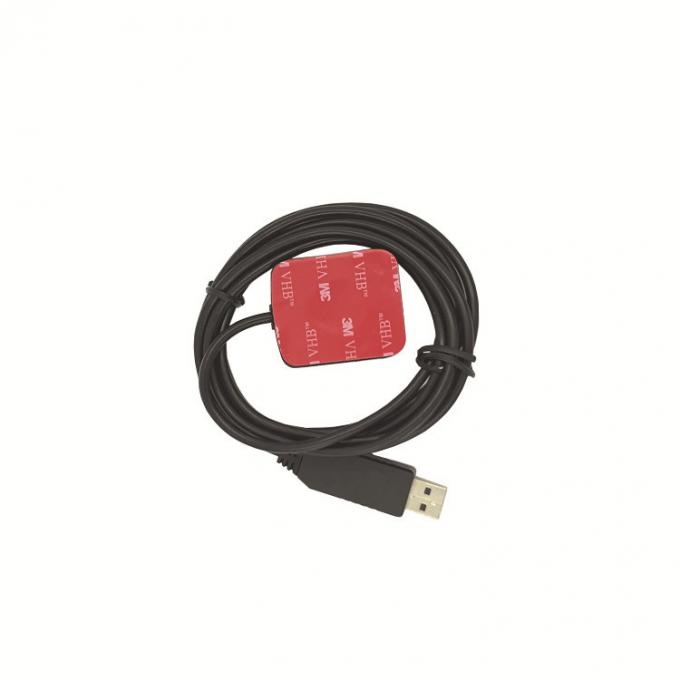

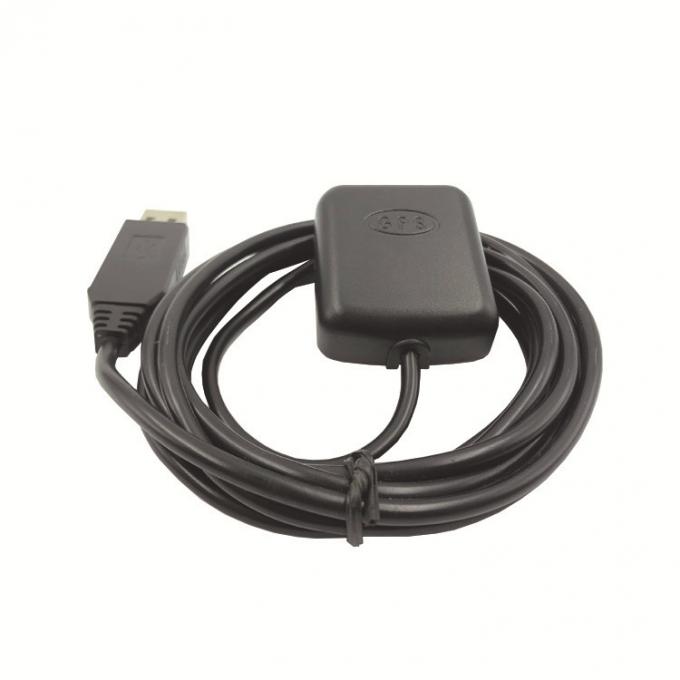

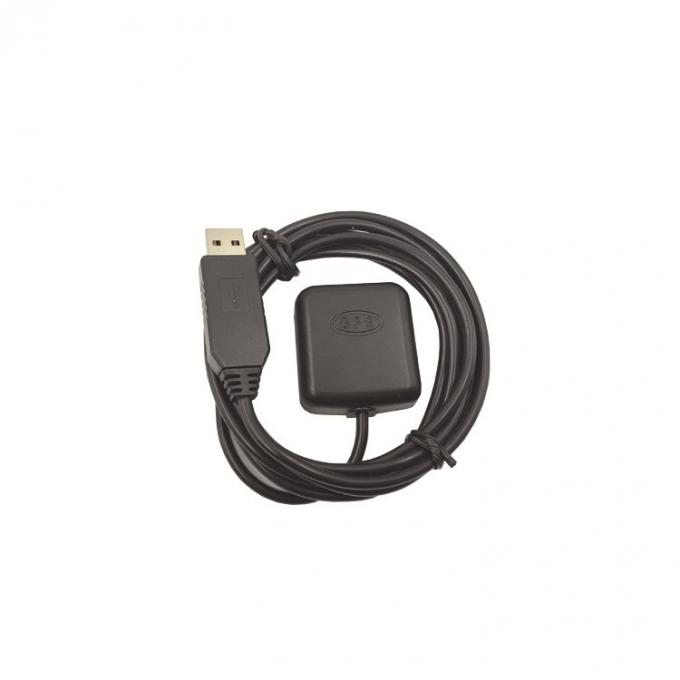

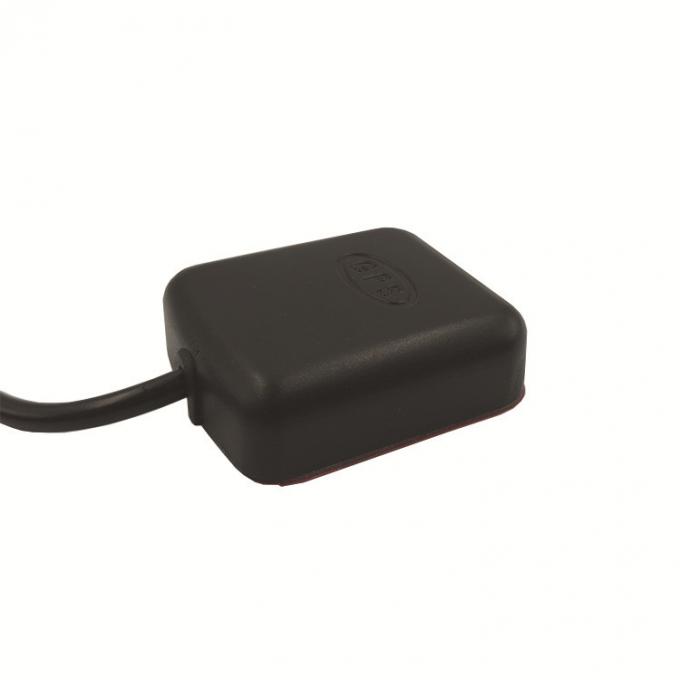

OEM USB GLONASS GNSS GPS Antenna G MOUSE 0183NMEA

Product Detail

USB GPS GLONASS Receiver GNSS GPS Chip Design USB Antenna G- MOUSE 0183NMEA



Product Description









Receiver Type

72-channel 8030 engine

GPS & QZSS:L1 C/A,1575.42MHz,

GLONASS (GN208G):

G1OF,

1598.0625~1605.375MHz

BEIDOU (GN208B):

B1 1561.098 MHz

SBAS: WAAS, EGNOS, MSAS

Horizontal

2.5m (Autonomous)

Position

2.0m (WAAS)

Accuracy

(including SBAS & QZSS; CEP, 50%

24hr static, -130dBm, >6 SVs)

Velocity

0.05 m/s (speed)

Accuracy

<0.3(heading)

(50%@30m/s)

Time Pulse

30ns (RMS)

Signal Accuracy

<60ns (99%)

Time Pulse

Frequency

0.25 Hz ~ 10 MHz

Time To First Fix

Hot start

Cold start

Autonomous

1.5 sec

26 sec

(50% -130dBm)

Sensitivity

(Autonomous)

-148dBm (acquisition)

-167dBm (tracking)

Navigation.

Update Rate

Max. 10Hz, GPS & GLONASS or

GPS & Beidou

Max. 18Hz, GPS only

Default 1Hz

Max. Altitude

50,000 m

Max. Velocity

<1,852 km/hr

Protocol Support

NMEA 0183 v2.3 and V4.x

UART: 4800 bps N,8,1;

GGA, GLL, GSA, GSV, RMC, VTG, TXT

SBAS Support

WAAS, EGNOS, MSAS

RTCM 2.3

Messages 1, 2, 3, 9

Dynamics

<4g



Power Supply

3.3 ~ 5.0 V

Power Consumption

40mA/average tracking (TTL)

Backup power



1.4 ~ 3.6 V

15uA

TTL I/O



VIH: 2.31~3.8V, VIL: 0~0.66V

V: ¡Ý2.8V, V¡Ü0.4V

USB I/O



VIH: 2.0~3.3V, VIL: 0~0.8V

VOH: ¡Ý2.8V, VOL¡Ü 0.3V

Protocols



NMEA, u-blox Binary

Environmental Data

Operating temperature


-40 ~ 85 except

battery: -20~60



Storage temperature



-40 ~ 85except

battery: -40~60



Vibration



5Hz to 500Hz, 5g

Shock

Half sine 30g/11ms



Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one,
shared vending machine, TV antenna, radio antenna, 5G image transmission, drone antenna
Antenna Gain: Higher the Antenna gain, the signal amplification better.

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
