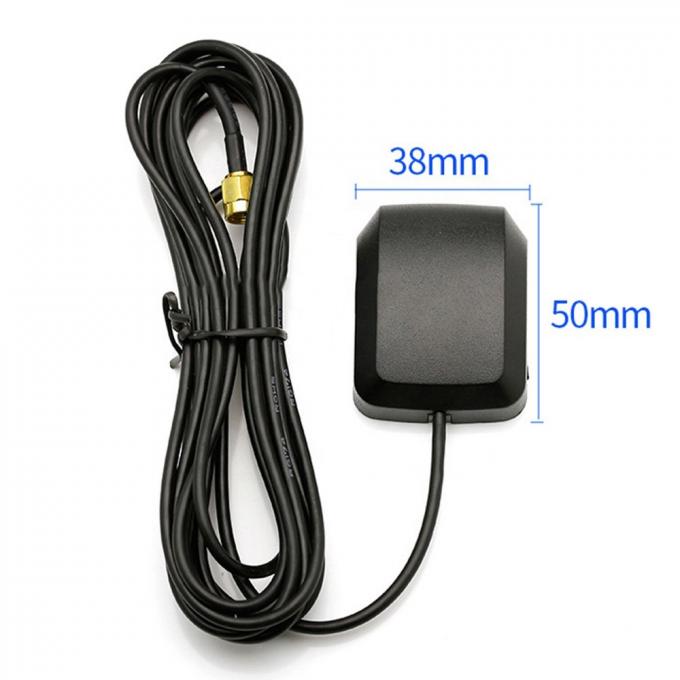

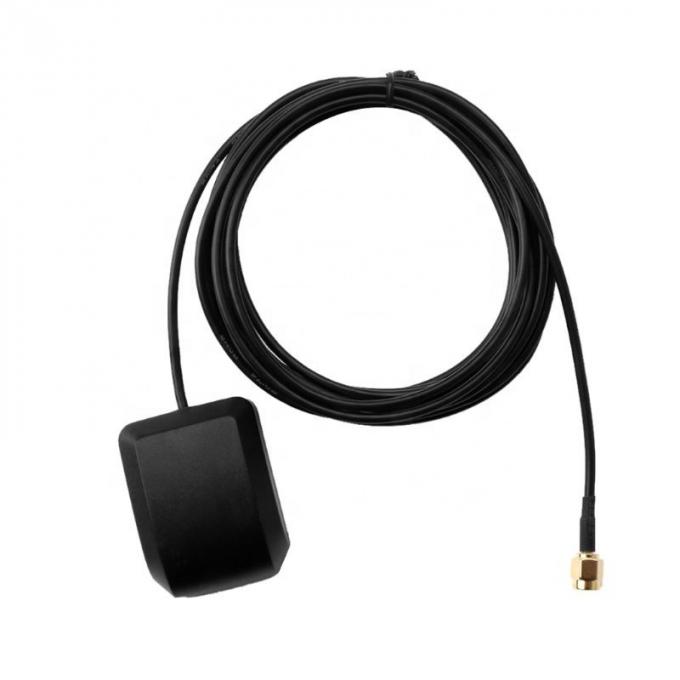

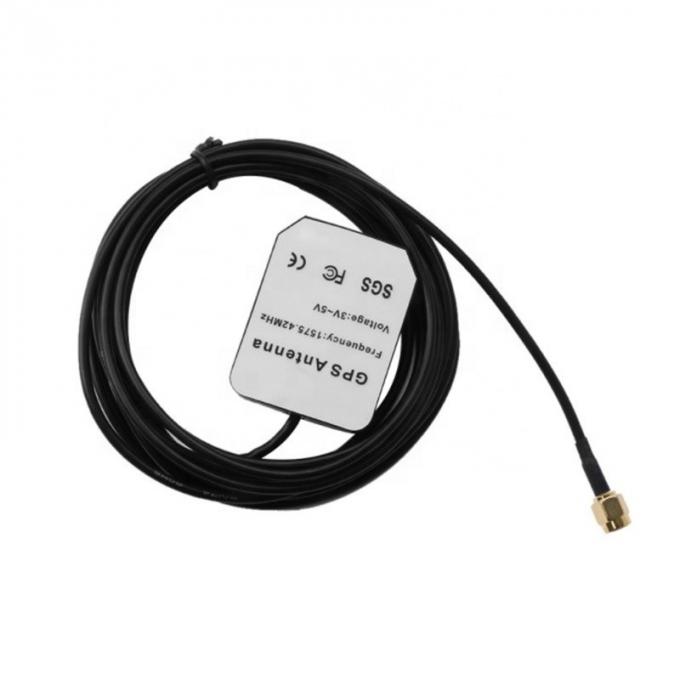

1575.42MHz Magnetic Mount Fakra Car GPS Antenna

Product Detail

Magnetic Mount GPS Antenna Fakra Active Car GPS Antenna with RG174 for GPS GNSS GLON


Product Description


Type: Car GPS Antenna

Antenna Specification:Center Frequency: 1575.42MHz

V.S.W.R: ≤1.5

Band Width: ±5 MHz

Polarization: Right-hand Polarization

Impedance: 50Ω

LNA Specification:

LNA Gain(without Cable): ≥28dB

Noise Figure: ≤1.5dB

Interference Suppression: 20dB(f0±140MHz)

V.S.W.R : <2.0

DC Voltage: 3.0±0.3VDC, 5.0±0.5VDC

DC current: ≤20mA

Mechanical Specification:

Material: ABS

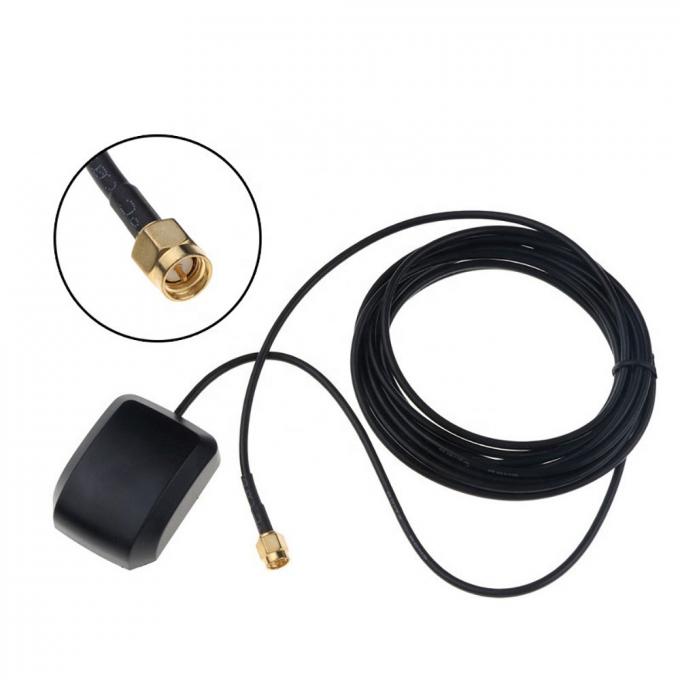

Connector: SMA

Mounting: 3M Sticker

Size: 46mm x 46mm x 13mm/1.81'' x 1.81'' x 0.51'' (Approx.)

Cable Length: 3m/118.11'' (Approx.)


Ultra-high sensitive GPS receiving, faster GPS signals capture.
Lower power consumption, stronger anti-jamming performance and wider working voltage range.
Adapt to wet and high temperature, harsh working environment.

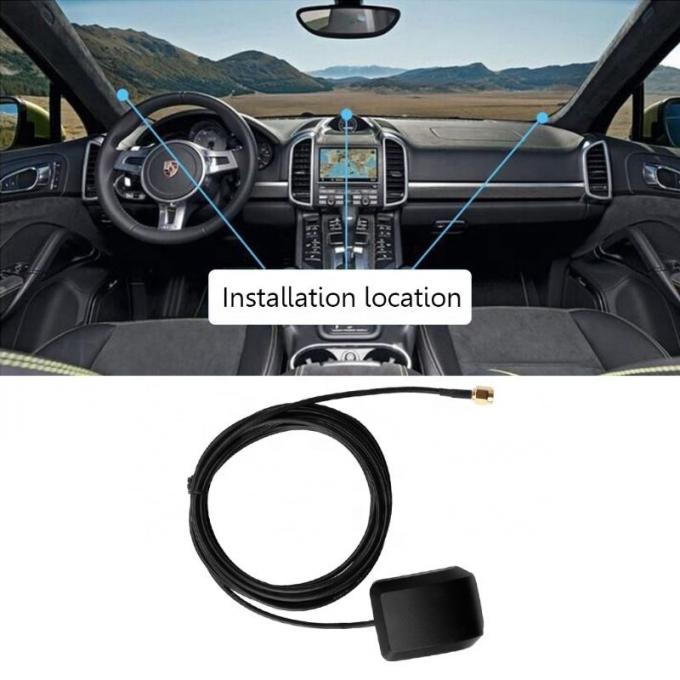

With magnetic base, easy to install.



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
