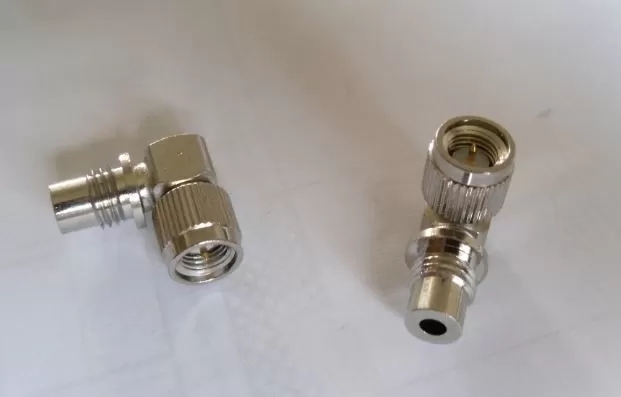

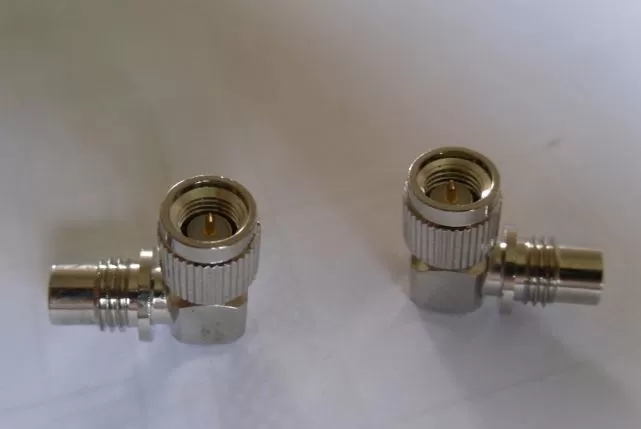

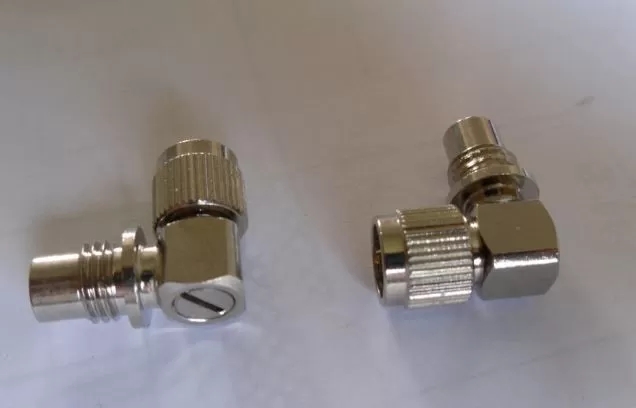

OEM Beryllium Bronze Jacket SMA RF Antenna Head

Product Detail

Supply torque antenna head



Product Description



Main technical features:

Temperature range;- 65 ~ + 165 ℃

Vibration: MIL-STD-202, Method 213

Characteristic impedance: 50Ω

Frequency range: DC ~ 12.4GHz

Operating voltage :335Vmax

Pressure: 1000 VRMS

Contact resistance: ≤3mΩ between inner conductors

Between outer conductors ≤2 mΩ

Insulation resistance :≥5000 MΩ

Durability: ≥300 times

Material and coating

Shell: environmentally friendly brass plated with hard gold

Jack: beryllium bronze plated hard gold

Insulator: polytetrafluoroethylene

Practical technical standard

MIL-C-39012

CECC 22110

IEC 60169-15



SMA series products are a very wide range of applications of small coaxial threaded connection connectors,It has the characteristics of high frequency, excellent performance and long life, suitable for microwave equipment and digital communication ,Radio frequency connectors for the system



MCX series RF connector is a small push-in self-locking connector, it has the characteristics of small size, light weight, compact structure, can be used for the volume, weight and installation of small electronic equipment or network system requirements



We are specialized in producing small RF connectors.The company has a standardized production plant.Professional do SMA,SMB,MCX,MMCX series small plug, in the same industry and antenna industry has a good reputation.The company wholeheartedly for customers to create a first-class production joint assembly line.In line with all for the customer's basic principle.We always adhere to the quality as the first guide, timely delivery, reasonable price model, and constantly improve their processing capacity to meet customer needs.We would like to thank our friends who have always supported us and believed in us.



SMA series product is one kind of application very extensive small thread joins coaxial connector, it has the frequency high, the performance is superior, the life long characteristic, is suitable for the microwave equipment and the digital communication system application RFconnector.



Product Details

Product NameSupply torque antenna head
Frequency Range0-6GHz
VSWR≤1.5
Input Impedance (Ω)50,75
Operating temperature-65℃~165℃
ConnectorSMA Female / RP SMA Female or Customizable
Connector PlatingGold Plated

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
