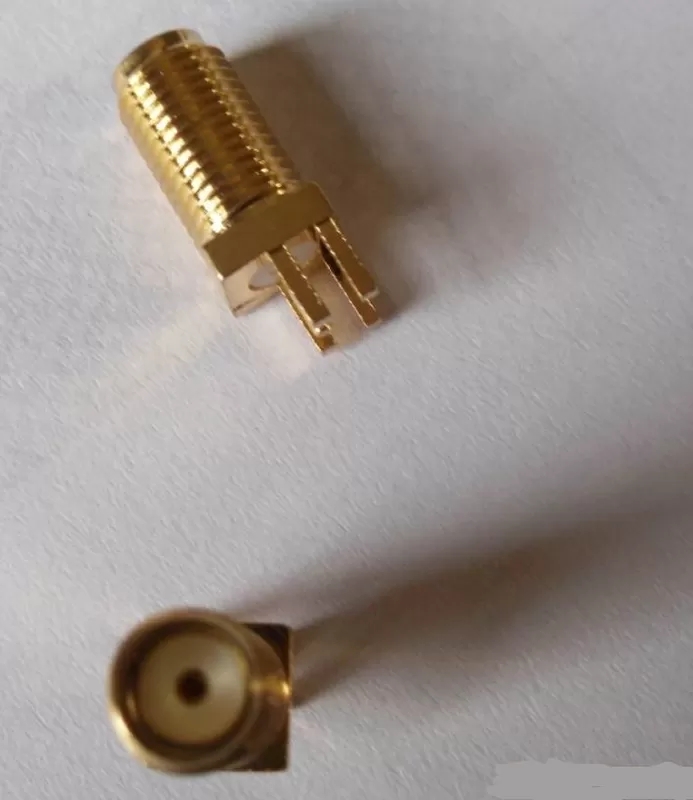

SMA eccentric foot lengthening type RF connector
Main technical features:
Temperature range;- 65 ~ + 165 ℃
Vibration: MIL-STD-202, Method 213
Characteristic impedance: 50Ω
Frequency range: DC ~ 12.4GHz
Operating voltage :335Vmax
Pressure: 1000 VRMS
Contact resistance: ≤3mΩ between inner conductors
Between outer conductors ≤2 mΩ
Insulation resistance :≥5000 MΩ
Durability: ≥300 times
Material and coating
Shell: environmentally friendly brass plated with hard gold
Jack: beryllium bronze plated hard gold
Practical technical standard
SMA series products are a very wide range of applications of small coaxial threaded connection connectors,It has the characteristics of high frequency, excellent performance and long life, suitable for microwave equipment and digital communication ,Radio frequency connectors for the system
MCX series RF connector is a small push-in self-locking connector, it has the characteristics of small size, light weight, compact structure, can be used for the volume, weight and installation of small electronic equipment or network system requirements
We are specialized in producing small RF connectors.The company has a standardized production plant.Professional do SMA,SMB,MCX,MMCX series small plug, in the same industry and antenna industry has a good reputation.The company wholeheartedly for customers to create a first-class production joint assembly line.In line with all for the customer's basic principle.We always adhere to the quality as the first guide, timely delivery, reasonable price model, and constantly improve their processing capacity to meet customer needs.We would like to thank our friends who have always supported us and believed in us.
SMA series product is one kind of application very extensive small thread joins coaxial connector, it has the frequency high, the performance is superior, the life long characteristic, is suitable for the microwave equipment and the digital communication system application RFconnector.
|Product Name||SMA eccentric foot lengthening type RF connector|
|Input Impedance (Ω)||50,75|
|Connector||SMA Female / RP SMA Female or Customizable|
|Connector Plating||Gold Plated|
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
