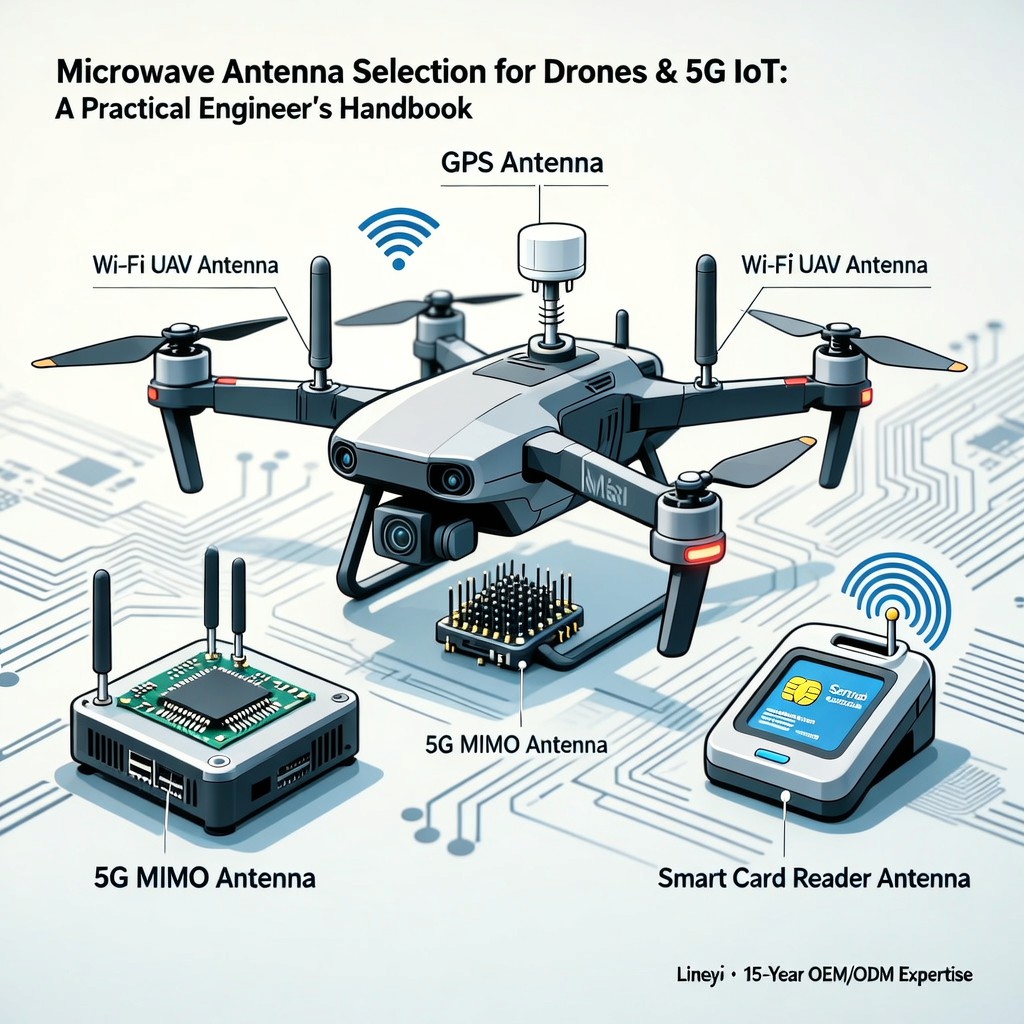

Microwave Antenna Selection for Drones & 5G IoT: A Practical Engineer’s Handbook

    Selecting the right microwave antenna is a critical systems-level decision—not merely an RF component choice—especially when designing for airborne platforms, ultra-low-latency 5G edge nodes, or compact smart card readers. This handbook synthesizes field-proven design principles with Lineyi’s 15-year OEM/ODM experience serving aerospace, telecom infrastructure, and secure identity solution providers. It bridges theoretical antenna parameters (e.g., VSWR, axial ratio, radiation efficiency) with real-world constraints including size, weight, power envelope, aerodynamic drag, and electromagnetic compatibility in dense spectral environments.

    For drone antenna selection, engineers must prioritize dual-band operation (e.g., 2.4 GHz/5.8 GHz ISM bands), wide beamwidth (>120° in azimuth), and robust circular polarization to mitigate multipath fading during dynamic flight maneuvers. PCB-integrated patch antennas offer low profile and mechanical stability but require careful ground plane management; helical or quadrifilar designs deliver superior gain and axial ratio at the cost of increased volume—making them ideal for long-range FPV or BVLOS telemetry links where link margin is non-negotiable.

    The integration of a GPS antenna for aerial photography demands high phase center stability, low group delay variation across temperature, and strong rejection of L1/L2 band interference from onboard video transmitters or ESC noise. Active ceramic patch antennas with integrated LNA and SAW filtering remain the industry standard—but recent iterations embed GNSS multi-constellation support (GPS, GLONASS, Galileo, BeiDou) and utilize choke-ring or cavity-backed structures to suppress ground-reflected multipath, directly improving positional accuracy to sub-10 cm RTK-level performance under canopy or urban canyon conditions.

    When specifying a Wi-Fi antenna for UAV, co-location with other radios introduces significant challenges: 2.4 GHz Wi-Fi channels overlap with Bluetooth and legacy RC links, while 5 GHz channels may conflict with radar detection systems or 5G NR n78/n79 bands. Isolation >30 dB between adjacent antennas is essential. Directional sector or MIMO-capable panel arrays—mounted orthogonally on fuselage surfaces—enable spatial diversity without compromising airframe integrity. Impedance matching networks must also accommodate voltage fluctuations typical of lithium-polymer battery discharge profiles.

    Designing for next-generation infrastructure, the 5G MIMO antenna must support massive MIMO configurations (4x4, 8x8, or higher), operate across multiple FR1 bands (n1, n28, n41, n77, n78), and maintain consistent pattern correlation (<0.3) across all elements. Integration into edge computing gateways or drone-based mobile base stations requires conformal mounting solutions—such as flexible printed circuit (FPC) antennas laminated onto curved housings—and careful thermal derating, as mmWave front-end modules generate localized heat that degrades antenna efficiency if not thermally decoupled.

    In secure identification applications, the smart card reader antenna must balance magnetic field uniformity, read range consistency (typically 3–6 cm), and immunity to metallic enclosures or nearby batteries. Inductive loop antennas operating at 13.56 MHz (ISO/IEC 14443) are standard, yet modern implementations use multi-turn spiral topologies with embedded impedance-matching capacitors and ferrite shielding to extend coupling distance while maintaining compliance with EMVCo and FIDO2 certification requirements. Miniaturization trends now enable full NFC functionality within sub-10 mm form factors—critical for embedded readers in drones used for access-controlled payload deployment or industrial asset tagging.

    All selections should be validated using anechoic chamber measurements, conducted emission scans per CISPR 32, and over-the-air (OTA) testing—including total radiated power (TRP) and total isotropic sensitivity (TIS)—under representative mechanical and thermal loading. Lineyi’s engineering workflow incorporates early-stage EM simulation (CST Studio Suite, HFSS), rapid prototyping via laser-direct structuring (LDS), and production-ready validation against IEC 60950-1, EN 301 489-1/17, and DO-160 Section 21 for aviation-grade UAVs. This ensures scalability from prototype batches to certified mass production without redesign cycles.
