The most meticulously selected microwave antenna will underperform if installed poorly. A proper outdoor antenna installation is a blend of precision mechanics, RF understanding, and rigorous procedure. Even minor errors in alignment or sealing can lead to significant signal loss, intermittent faults, or complete failure. This guide serves as a professional antenna installation guide, covering the critical steps from site preparation to final performance verification, ensuring your investment delivers its full potential for antenna performance optimization.

The right tools are essential for a professional installation. Precision alignment and proper sealing require more than just basic hand tools.

Phase 1: Pre-Installation Planning and Site Survey

Preparation prevents poor performance.

1. Path Clearance Verification: For point-to-point links, ensure the Fresnel zone (the elliptical area around the visual line-of-sight) is at least 60% free of obstructions like trees or new buildings.

2. Tower or Mast Assessment: Verify the structure can handle the antenna's weight and wind load. Ensure it is properly grounded.

3. Gathering Data: Have the exact GPS coordinates, azimuth (compass bearing), and elevation (tilt angle) for both ends of the link ready. These are calculated during the link planning stage.


Phase 2: Mechanical Mounting and Hardware Assembly

Strength and stability are non-negotiable.

4. Mounting the Antenna: Secure the antenna to its mount (e.g., a pole mount or a non-penetrating roof mount) using all provided hardware. For outdoor antenna installation, always use stainless steel hardware to prevent corrosion.

5. Connecting the Feed Line: Attach the coaxial cable (e.g., LMR-400, Heliax) to the antenna's connector. Use the specified torque to avoid damaging the connector. Immediately install a weatherproof boot or wrap the connection with sealing tape (see Phase 4) to prevent moisture ingress—the number one cause of failure.


Phase 3: Precision Alignment – The Most Critical Step

This is where the antenna installation guide becomes an art of precision.

6. Coarse Alignment (Azimuth): Using a precision compass (corrected for magnetic declination), point the antenna to the calculated azimuth bearing.

7. Coarse Alignment (Elevation): Use an inclinometer to set the antenna to the correct vertical angle.

8. Fine Alignment Using Signal Strength: This is the definitive method.

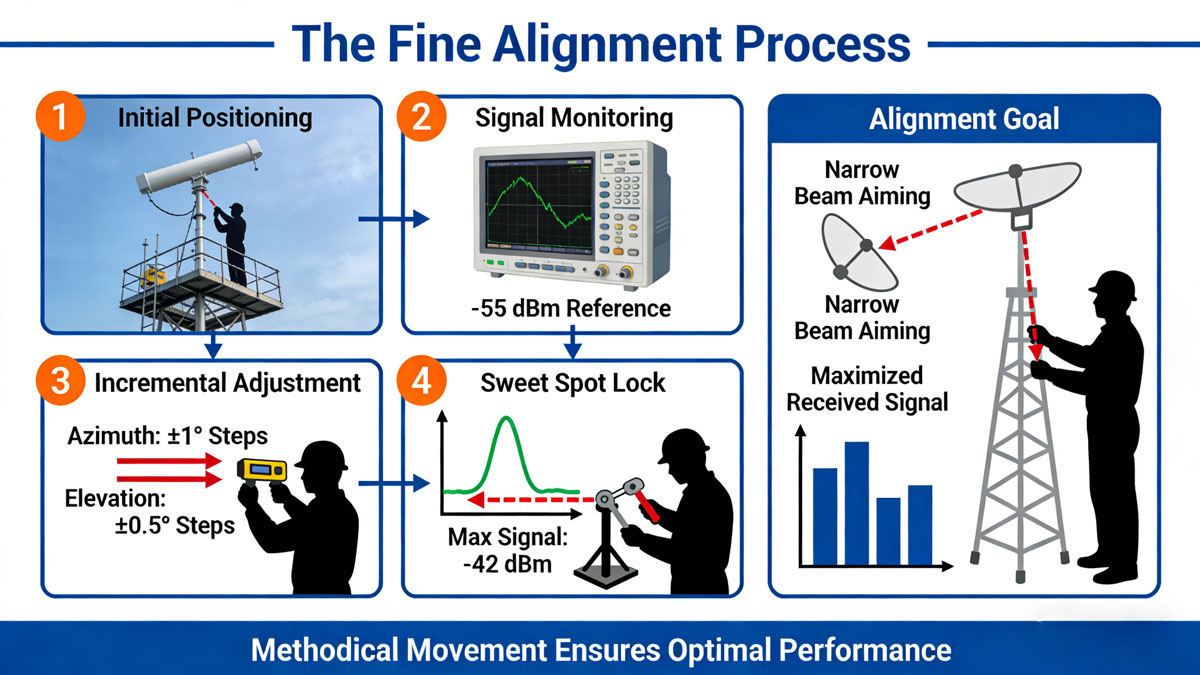

The fine alignment process. The goal is to move methodically to find the exact 'sweet spot' where the received signal is maximized, ensuring the narrow beam is perfectly aimed.

Phase 4: Weatherproofing and Sealing

A link aligned perfectly but not sealed will fail within months.

9. The DC Block: For all outdoor connections, create a 'drip loop' in the cable so that water runs down and away from the connector, not into it.

10. Sealing the Connection:


Phase 5: System Verification and Optimization

The final step in the antenna installation guide is proving the system works.

11. Performance Baselines: Record the final optimized RSL. Measure and record the transmitter output power. These are your baseline values for future maintenance.

12. Bit Error Rate (BER) Test: Run an in-service or test BER test. A well-aligned link should show a BER of better than 1x10⁻⁹ (essentially error-free) under clear-air conditions.

13. Documentation: Update your system records with the final alignment coordinates, RSL, test results, and photos of the installation.


Following this structured antenna installation guide transforms installation from a risky variable into a guarantee of performance. Proper outdoor antenna installation, precise alignment, and meticulous sealing are the final, essential steps in the journey of antenna performance optimization, ensuring your microwave system provides reliable, long-term service.
