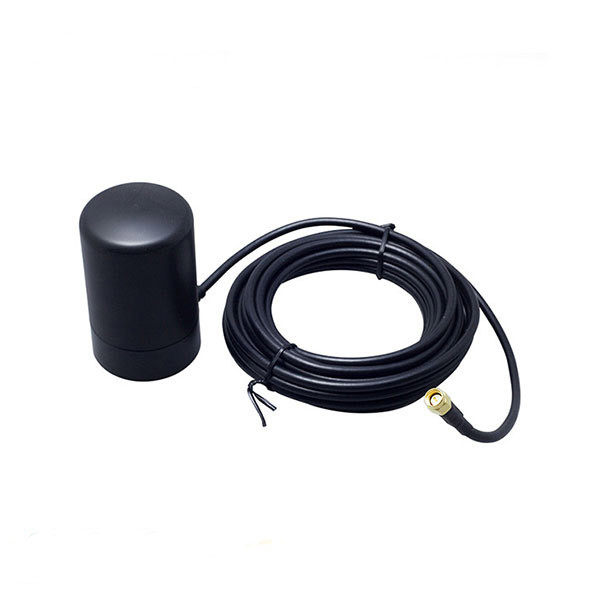

SMA J 4G LTE Outdoor Screw Mounting Terminal Antenna 3dBi

Product Detail

Terminal Antenna Outdoor Screw Mounting Terminal Antenna 3dBi LTE 4G



Product Description



Frequency Range (MHz):698~960/1710~2700
VSWR:<2.2
Input Impedance(Ω):50
Max Gain(dBi):≥1.0dBi(698-960MHz)/≥2.0dBi(1710-2700 MHz)
Polarization:Vertical
Input Connector:SMA-J
Max Input Power(W):10
Height(mm):84±1
Weight(g):330±5
Cable Length(mm) :5000±50(3D/FB)
Radome Material:Plastic
Antenna Color:Black
WorkingTemperature(℃):-40~70



High Efficiency and Sensitivity,Low Loss RF Coaxial Connector Cable Feed
Common Frequency: 4G/ 3G/ 2.4G/ GSM/ CDMA/ RFID/ GPS/ 1.2G/ 3.5G/ 5.8G/ Lora/ 450MHz/ 433MHz, etc.
Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.


SMA J 4G LTE Outdoor Screw Mounting Terminal Antenna 3dBi
