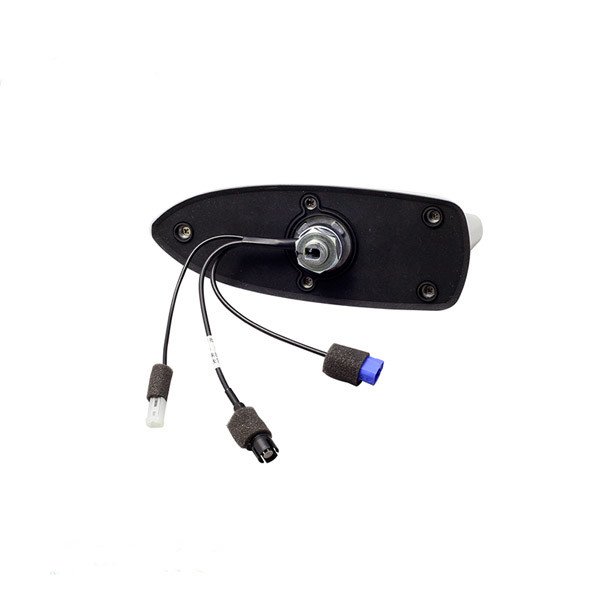

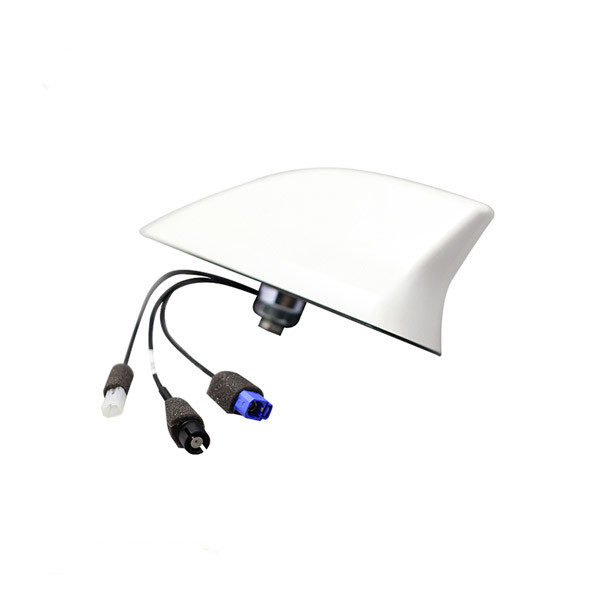

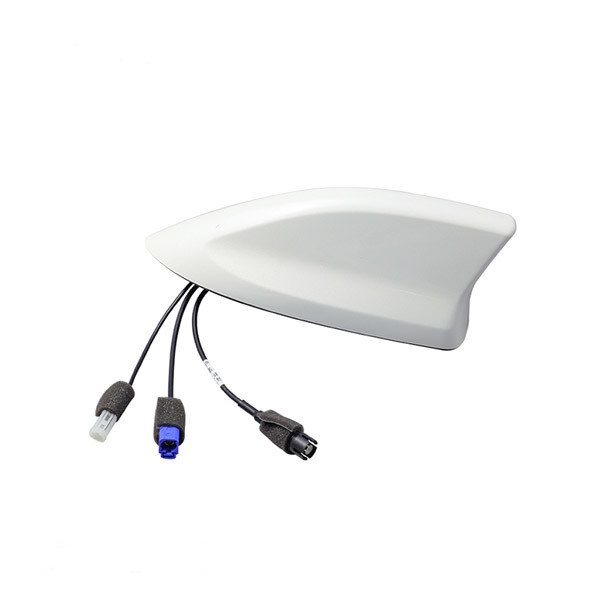

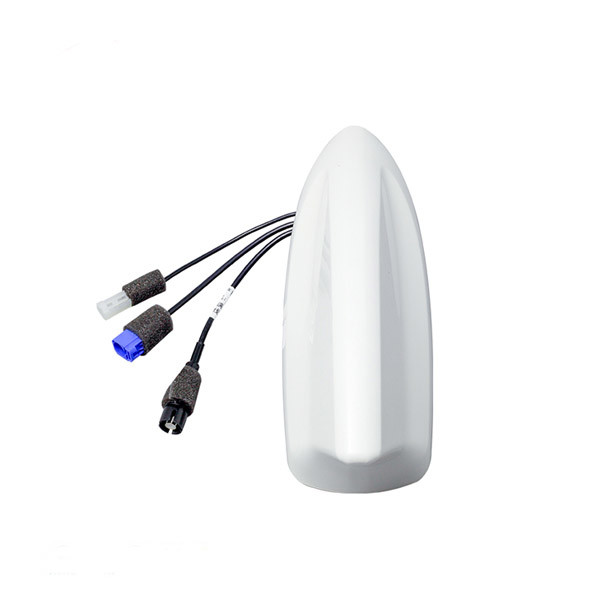

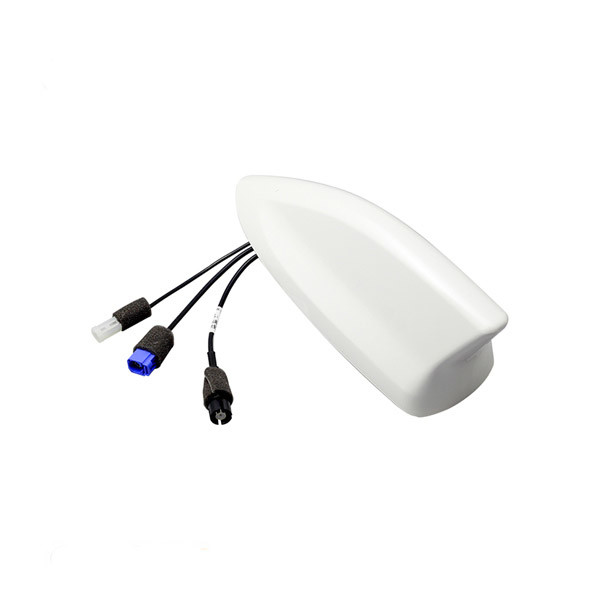

RHCP Polarization GPS GLONASS Auto Radio Antenna
Product Detail
Auto Radio Decorative Types Antenna Aerial Accessories Gps Glonass Antenna
Product Description
Frequency Range:AM 520~1710KHz FM 88~108MHz
Frequency Range:GPS(1575.42±1.023)MHz B1 (1559.098±2.046)MHz
Gain:AM -4±5dB FM 14±4dB 28±3dB
Polarization:RHCP
VSWR:≤4.5, ≤2
Noise Voltage:AM ≤-6 dBμV FM ≤0 dBμV
Noise Factor:≤1.5dB
Out of band attenuation:≥30dB @ fo±100MHz
Power:DC +9~+16V DC+3.3~+5V Feed by coaxial line
Current:30～90mA(@+12V)≤20mA(@+3.3V)
Input Connector:ISO-J FAKRA
antenna manufacturer,outdoor indoor antennas,magnetic antennas,rubber antenna,supply 5g antenna,lte 4g antenna,
2.4G 5.8G dual band antenna,wifi indoor antenna,433Mhz 868Mhz 915Mhz antenna,cable length and connectors can be customized according to requirements
When you have any antenna and antenna application technology needs, we are honored to help you! Please feel free to contact us.
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
