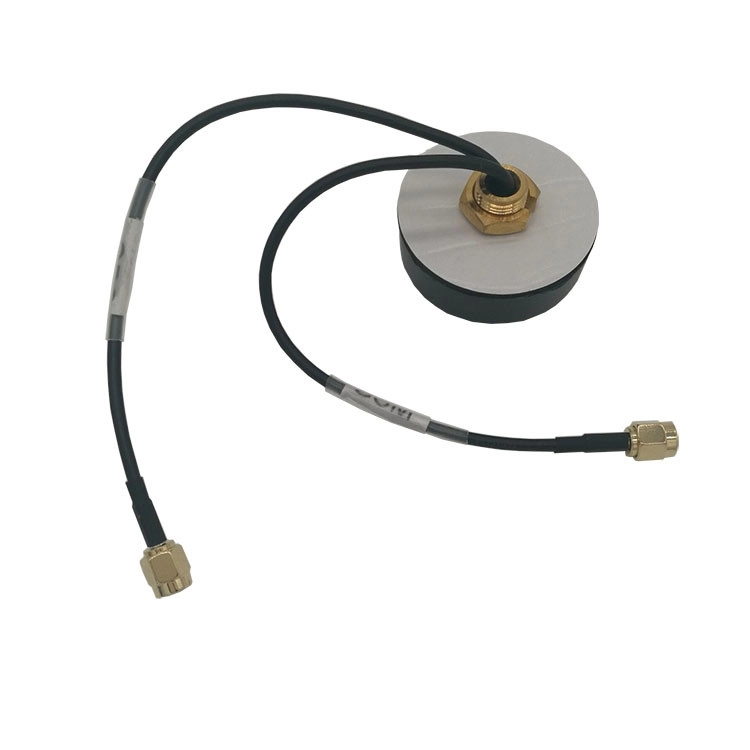

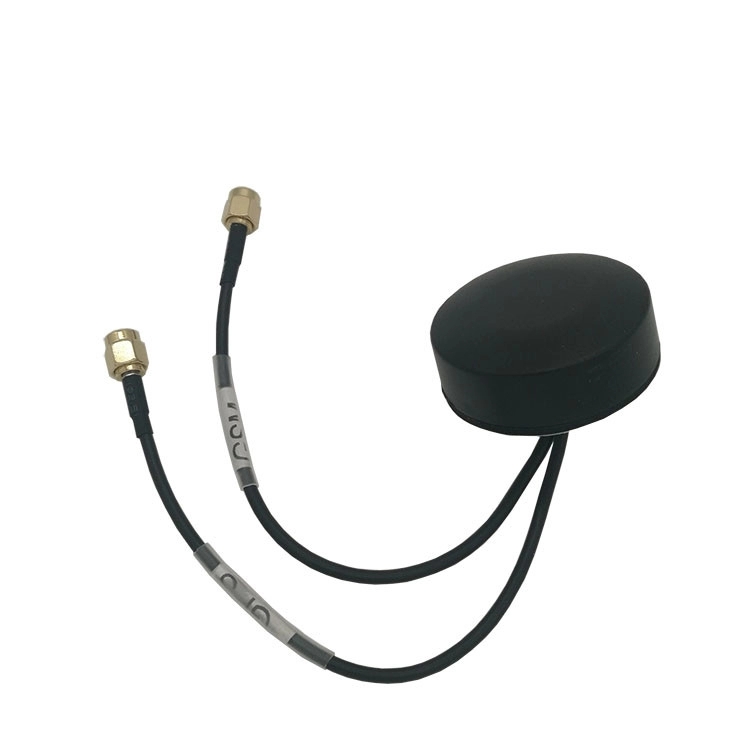

RG174 Dual Cable GPS GSM External Combined SMA J Antenna
Product Detail
Antenna SMA-J Connector Car RG174 Dual Cable GSM 2G/GPS External Combined Antenna
Product Description
Product Name:2G/GPS Antenna Part Number: DPC0063C | ||
GPS Antenna ELECTRICAL | ||
Operation Frequency (MHz) | GPS: 1575.42Mhz | |
GPS Polarization | R.H.C.P | |
Voltage | DC 3.0~5.0V | |
Noise Figure | 1.1 dB Typ | |
Impedance (Ohms) | 50Ω | |
VSWR | <3.0 | |
Peak Gain(dBi) | 30dBi | |
2G Antenna ELECTRICAL | ||
Operation Frequency (MHz) | 2G:824-960 1710-1880Mhz | |
Polarization | Linear | |
Efficiency | 50% | |
Impedance (Ohms) | 50Ω | |
VSWR | <1.5 | |
Peak Gain(dBi) | 3.0 | |
Radiation properties | Omni-directional | |
MECHANICAL | ||
Connector | SMA-J | |
Dimensions(mm) | φ | |
Cable | Length:150mm Type: RG174 | |
ENVIRONMENTAL | ||
Operation Temperature | -40℃~+85℃ | |
Storage Temperature | -40℃~+95℃ | |
Relative Humidity | 40%~95% | |
RoHS compliant | Yes | |
Main
The function of sucker antenna is to radiate and receive radio waves. When installing and using sucker antenna,
pay more attention to stay away from obstacles and straighten the lead, so as to better send and receive signals
and achieve communication distance
We can make :VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna,
3G (850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz),GPS+BD(1575+1561),
GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
Previous : 137mm Length Omnidirectional GSM Antennas 868 900 915MHhz
Next : 900 1800MHz SMA GSM Antenna For Improving Cell Phone Voice Data Reception
