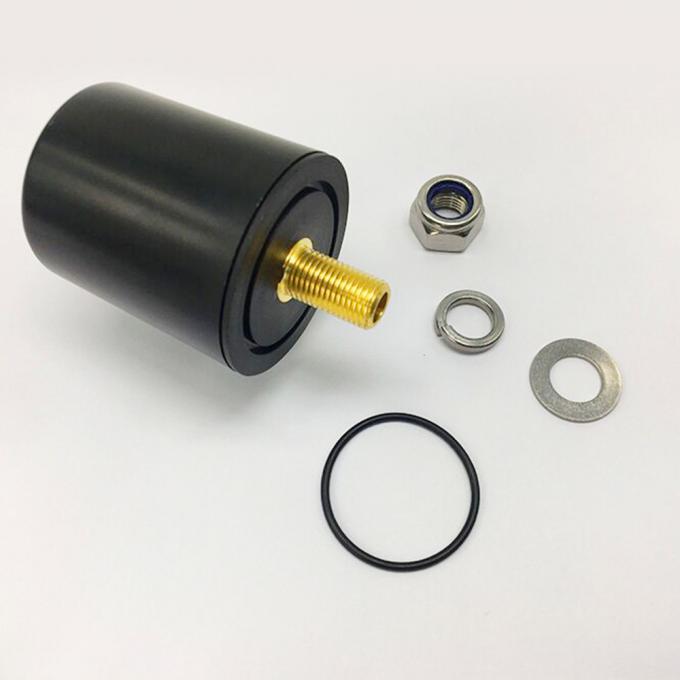

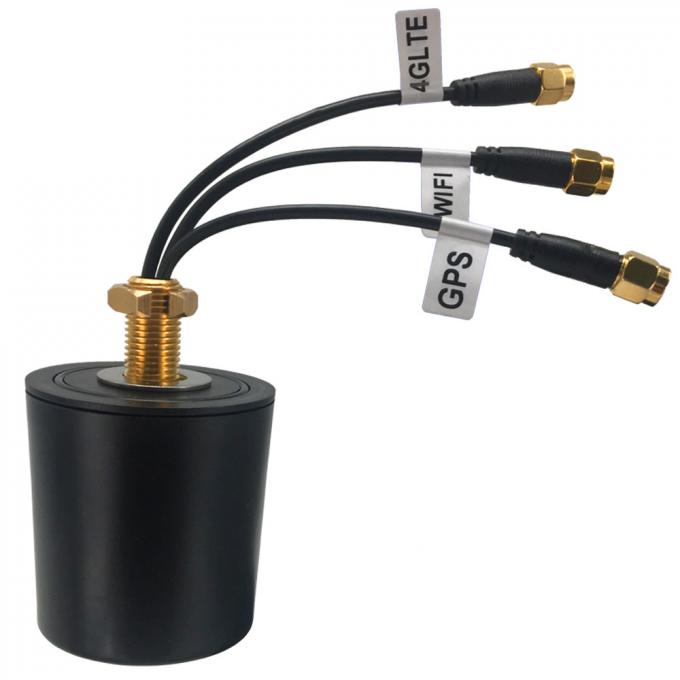

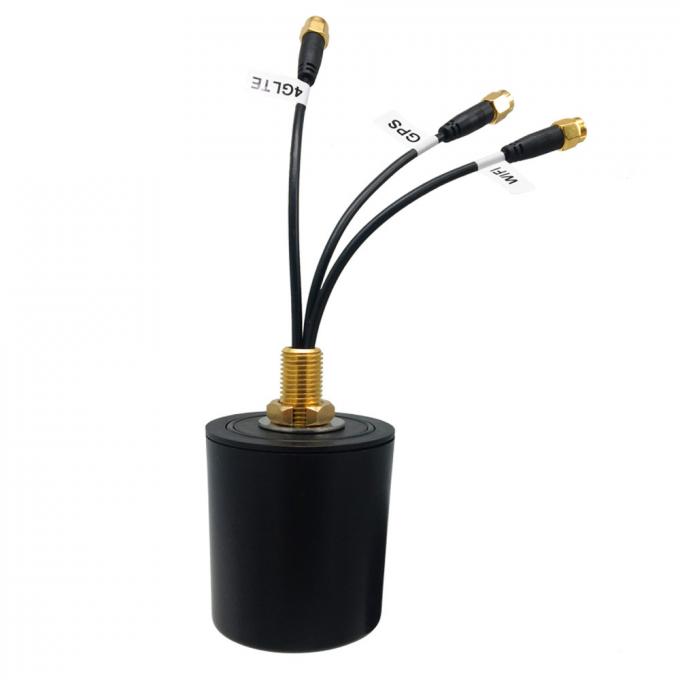

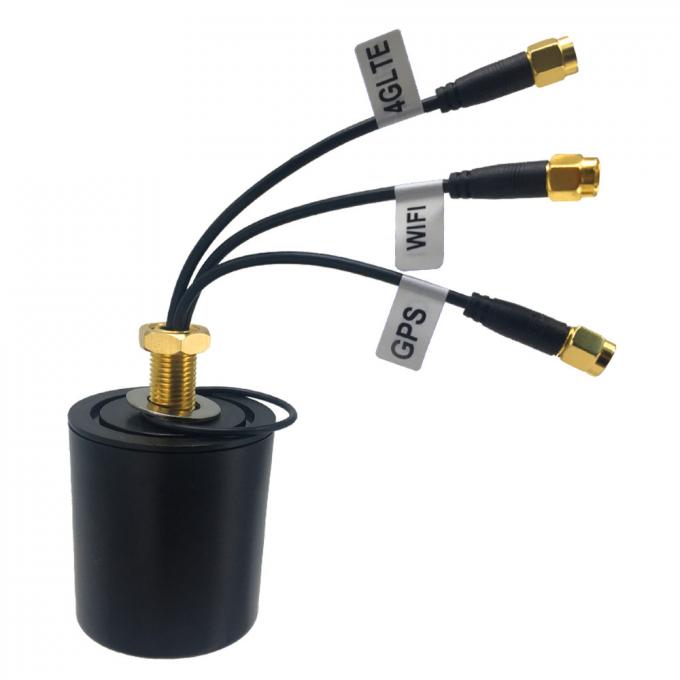

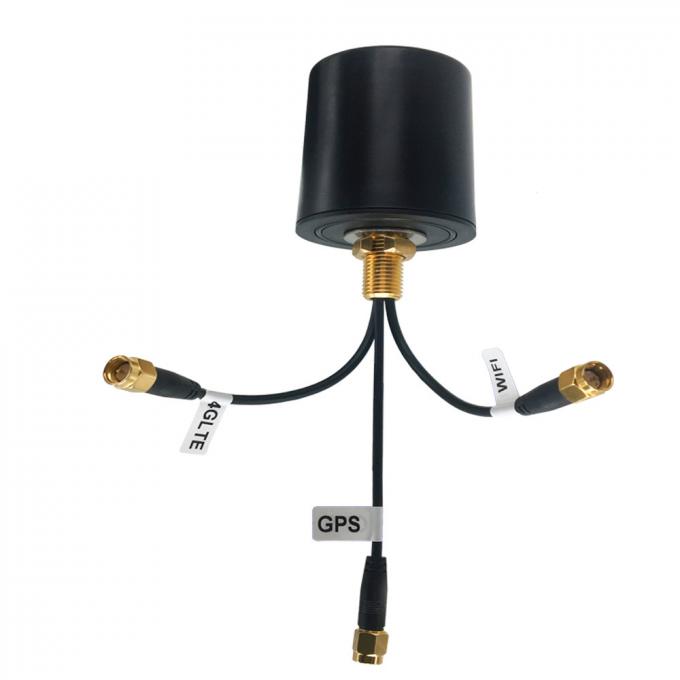

Outdoor Waterproof GPS WiFi 4G LTE Combo Antenna With SMA J Connector

Product Detail

Omni Directional Waterproof Screw Mount 3-in-1 Combined Antenna Outdoor GPS Wifi 4G LTE Combo Antenna



Product Description



Omni Directional Waterproof Screw Mount 3-in-1 Combined Antenna Outdoor GPS Wifi 4G LTE Combo Antenna

Frequency Range (MHz)

1575.42MHz/698-2700MHz/2400-2500MHz

Gain (dBi)

28/5/5

VSWR

≤1.5

Input Impedance (Ω)

50

Maximum Power (W)

50

Power

DC5V

Power consumption

≤16mA

Lightning Protection

DC grounding

Connector type

SMA-J or Customizable

Cable Type

RG174 or RG316

Cable length (Meter)

2.5±0.03M

Radome Material

ABS

Aerial Color

Black

Mount way

Screw

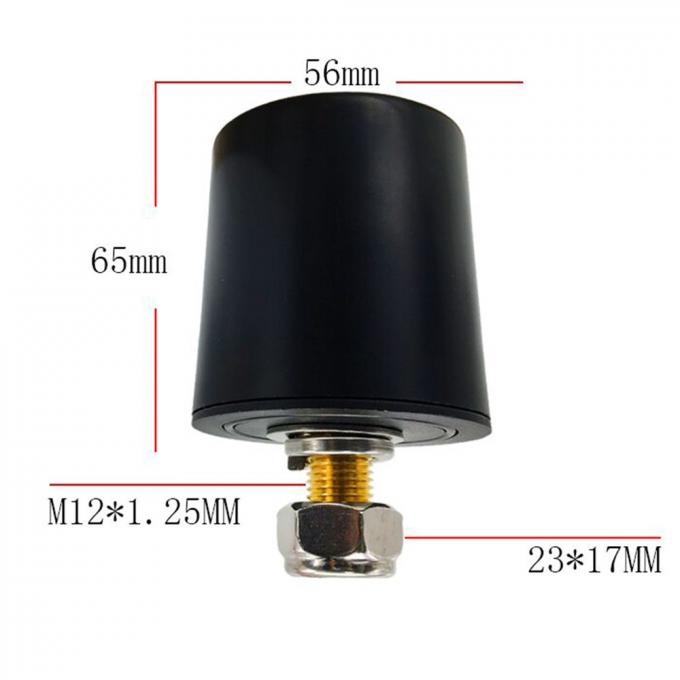

Dimensions (mm)

56*56*65mm

Weight (g)

200

Waterproof

IP66

Noise Factor (dBi)

≤1.5

Operating Temperature (℃)

-40--60°

Relative Humidity

Up to 95%

ROHS Compliant

yes



GPS Antenna(1575.42mhz),GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Ban
2.4g GSM Wifi LTE 2g 3g 4g 433mhz 868mhz External Rubber Duck Antenna 2dBi 3dBi 5dBi 7dBdi 9dBi Wifi Antenna
ABS material, high temperature resistance

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
