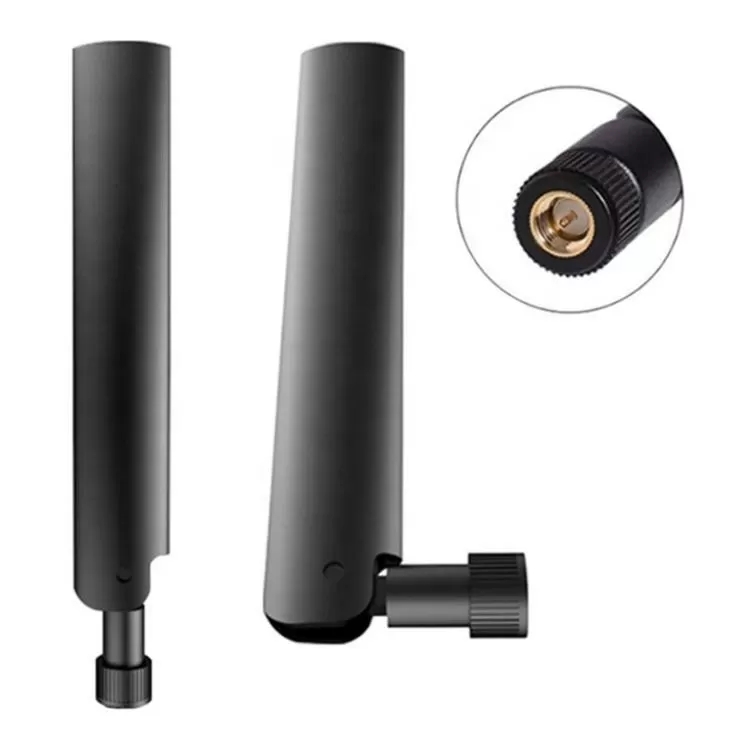

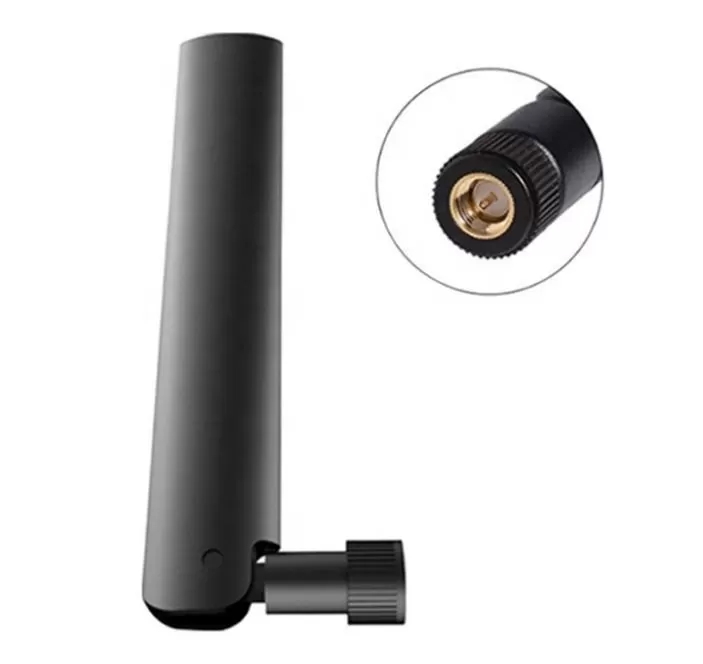

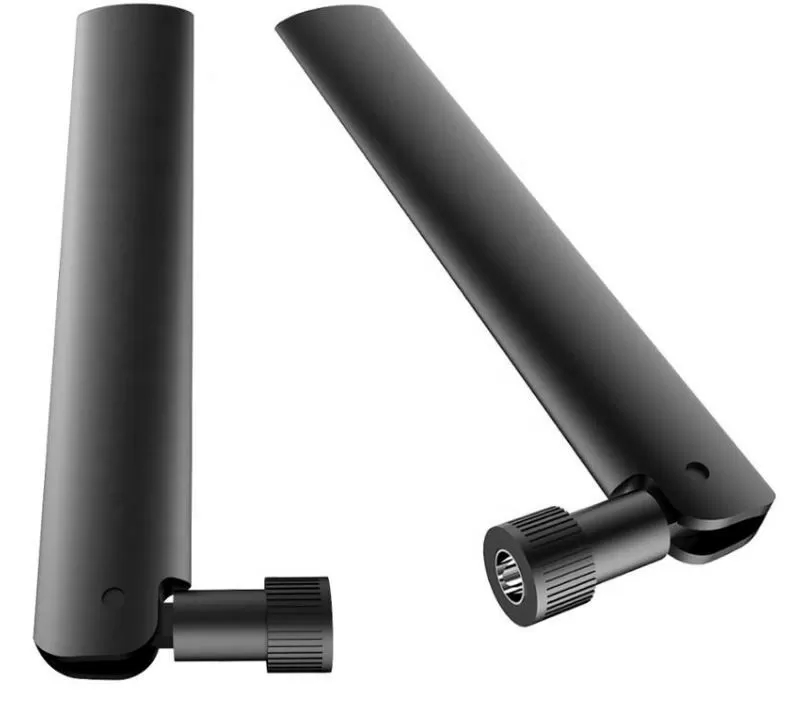

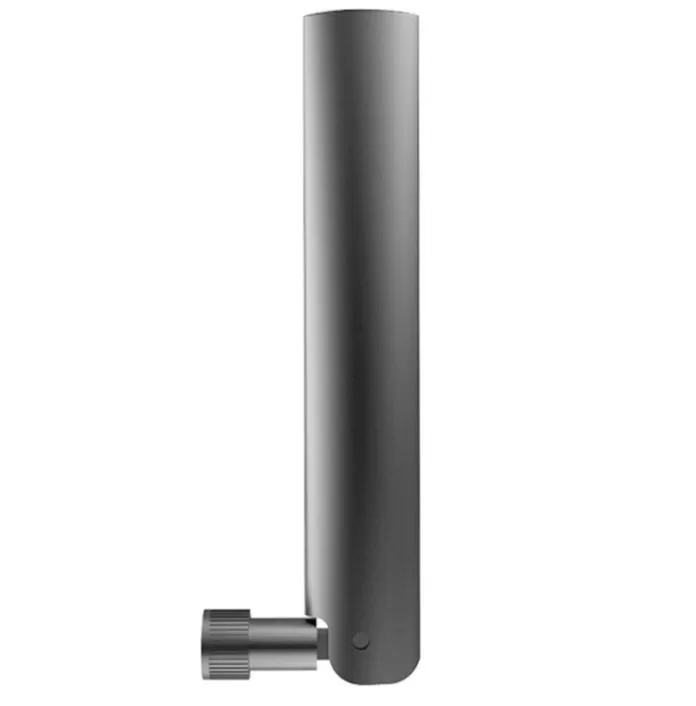

Omnidirectional External SMA LTE Antenna For Cellular Trail Camera
Product Detail
698 MHz~2700 MHz Frequency Range External sma lte antenna for Cellular Trail Camera
PRODUCT INFORMATION
| LTE 4G External Antenna | |
| Model Name | 98619ZSAX025 |
| Brand Nand | APEX |
PRODUCT SPECIFICATIONS
| Electrical | |
| Frequency | 698 MHz ~ 960 MHz / 1710 MHz ~ 2690 MHz or customized |

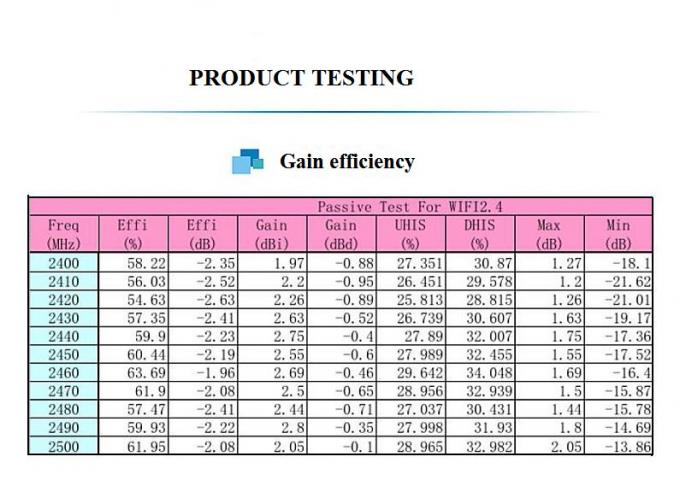

| Gain | 5dBi . |

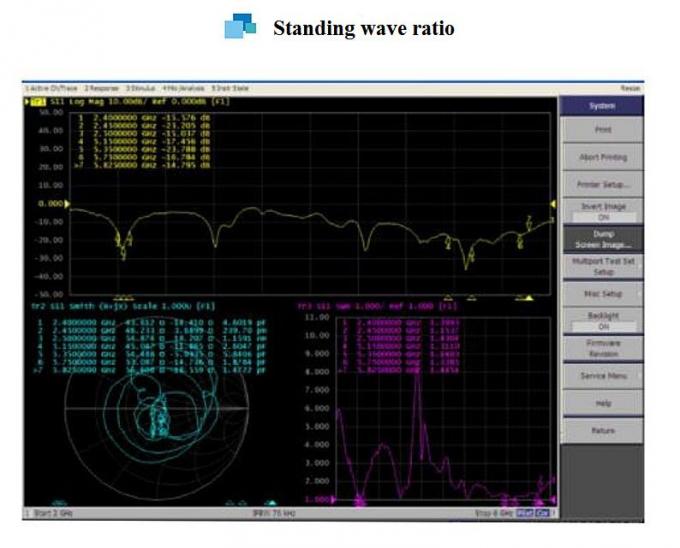

| VSWR | < 3.0 |
Efficiency (The test results are based on single antenna) | 50% at low band 65% at high band |
| Polarization | Vertical |
| Impedance | 50 ohms |

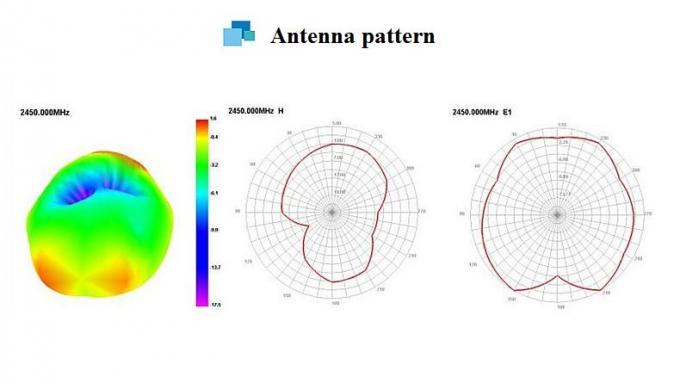

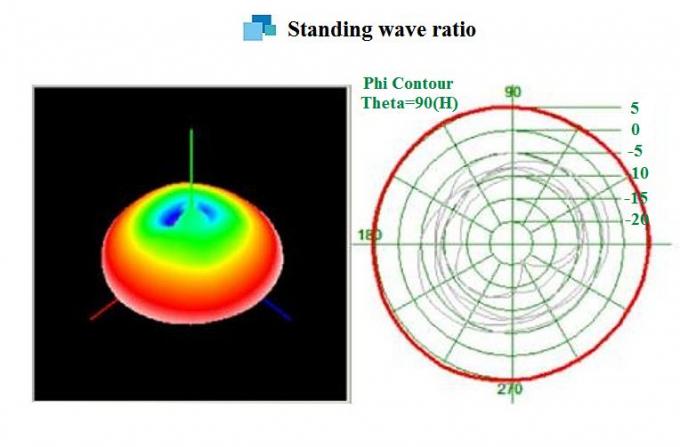

| Radiation | Omni-directional |
| Physical and Environmental | |

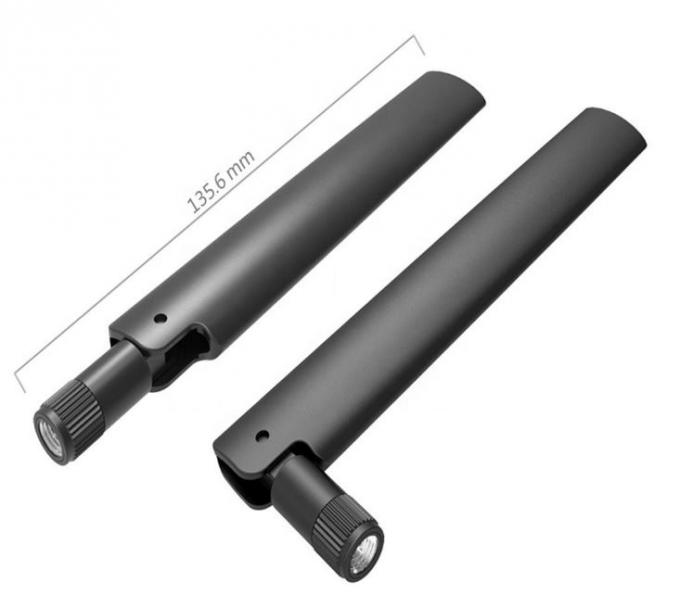

| Dimension (DxL) | 20.1 x 135.6 mm |
| Weight | 14.4 g |
| Connector | SMA PLUG or customized |
| Material | ABS |
| Operating Temperature | -20℃ ~ +65℃ |
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
