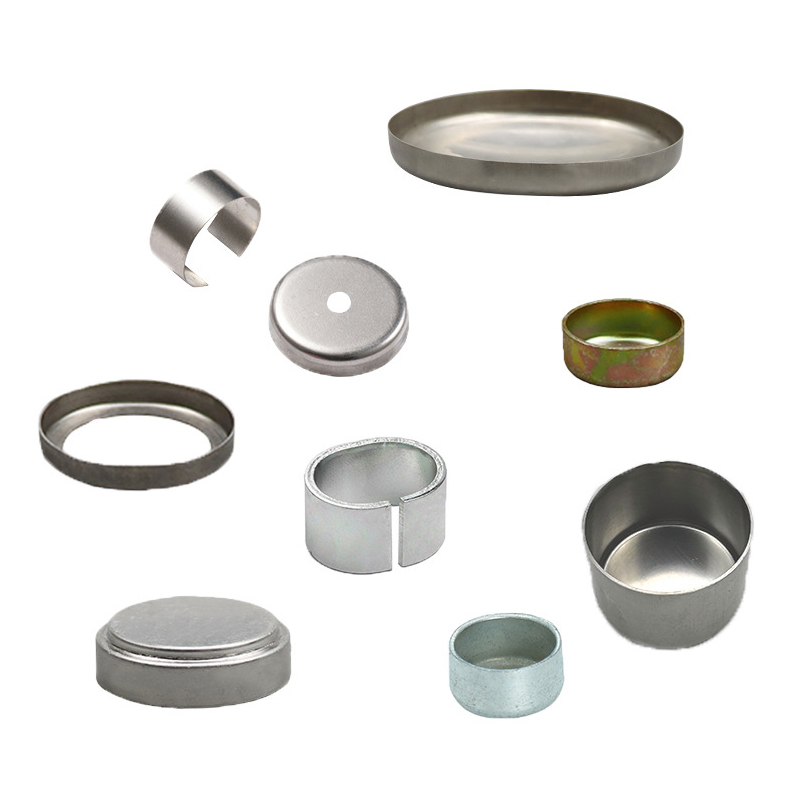

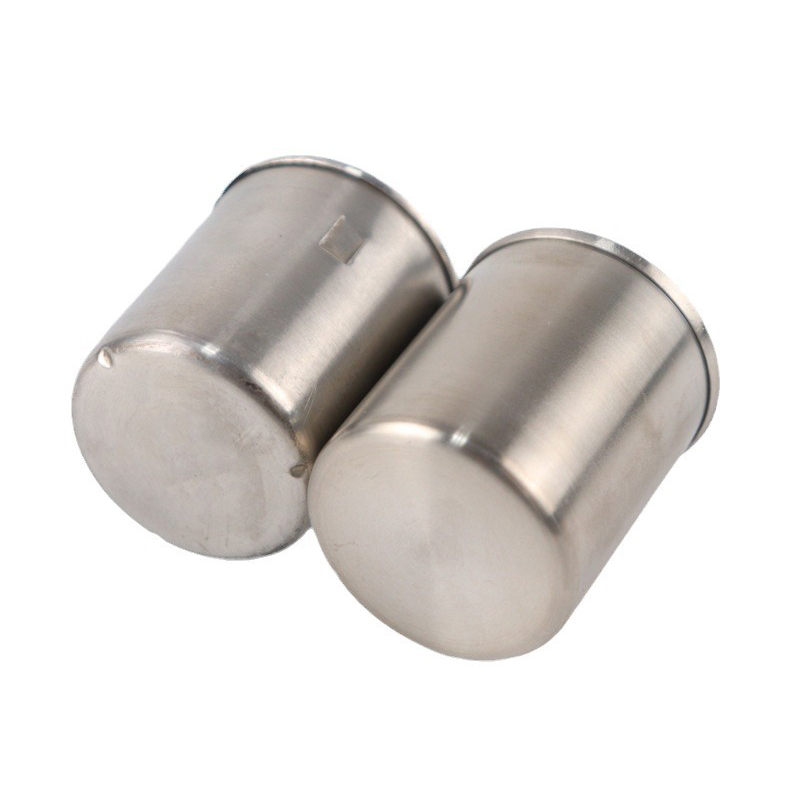

Oem Metal Deep Draw Stamping Parts

Deep draw metal stamping technology has also been widely applied in the fields of automotive manufacturing and aerospace. Automotive and aircraft components typically require good strength and rigidity to ensure their safety and stability.

Product Detail

Oem Metal Deep Draw Stamping Parts

Five key points for deep draw metal stamping parts:

1. Is the clearance design of the stamping die reasonable

When designing the clearance of stamping molds, it is necessary to comprehensively consider the size, material, thickness, and stretching height of the product. Unreasonable design of mold clearance can also lead to scratches.

2. deep drawn process

For products with higher height or smaller diameter, at the beginning of mold design, it is necessary to calculate the number of deep drawing processes required. If there are too few process designs, it can also lead to scratches.

3. The influence of mold surface roughness

For stainless steel products, the roughness of the mold surface also has a significant impact on the surface quality of the product. Suggest polishing the surface of the mold

4. Selection of stamping equipment

Due to the fact that stamping and stretching parts are a process that undergoes severe deformation, it is recommended to use hydraulic presses for processing. Mechanical presses have a fast stamping process, which can easily cause the surface quality of the product to not meet the requirements during processing.

5. Selection of raw materials

For deep drawn parts, when selecting raw materials, it is important to choose materials that are soft and easy to draw. For certain special products, it is also necessary to consider annealing while deep drawing.

Specification:

1.Optional Material：		Metal, steel, stainless steel,Aluminum.
2.Process Technologies:		deep draw metal stamping
3.Reachable Tolerance:		0.01-0.1mm
4.Optional surface treatment：		Zinc plated, Nickel plated,Powder coating,painting,brushed.
5.Sample Making :		Rapid prototype according to customer's drawing.
6.Quality Guarantee:			Pre-production sample validation -Inspection in production process-Final inpesction.
7. Certificate of Quality system:	ISO9001 : 2015, IATF 16949 : 2016

If you have demand for deep draw metal stamping services, deep drawn parts,oem metal stamping parts,Welcome to contact us, we will provide you best price and good quality product.
