GPS L1 4dbi 5G Antenna , GNSS NR MIMOX4 WIFI MIMO Antenna

Product Detail

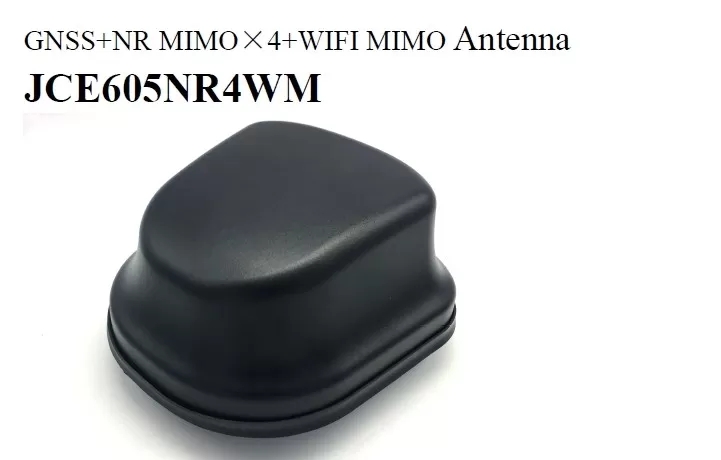

GNSS+NR MIMOX4+WIFI MIMO Antenna, JCE605NR4WM



Product Description



ItemSpecifications

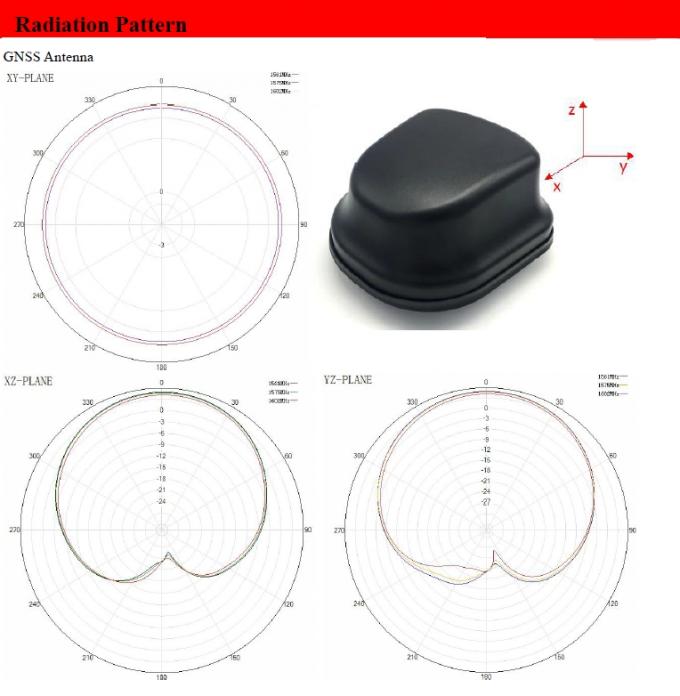

GNSS AntennaFrequency

GPS L1/L2/L5

GLONASS G1/G2/G3

COMPASS B1/B2/B3

Galileo E1/L1/E2/E5a/E5b/E6

PolarizationRHCP
LNA Gain40士2dB
Noise Figure≤2.0dB
Supply Voltage3~12V DC
Current Consumption≤60mA
V.S.W.R<2.0
Impedance500

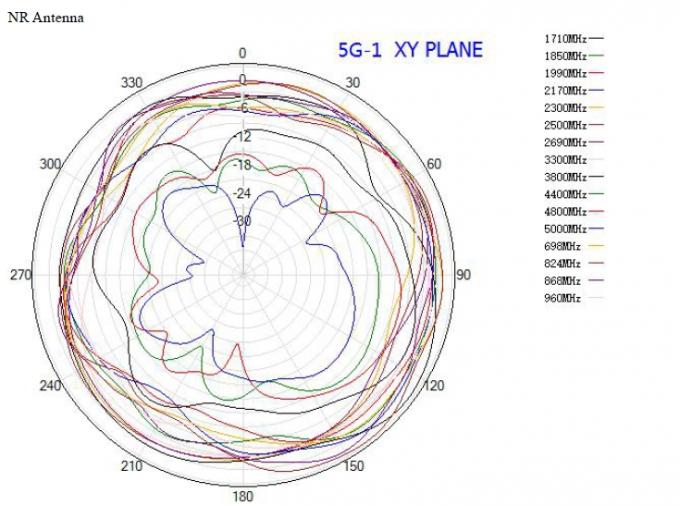

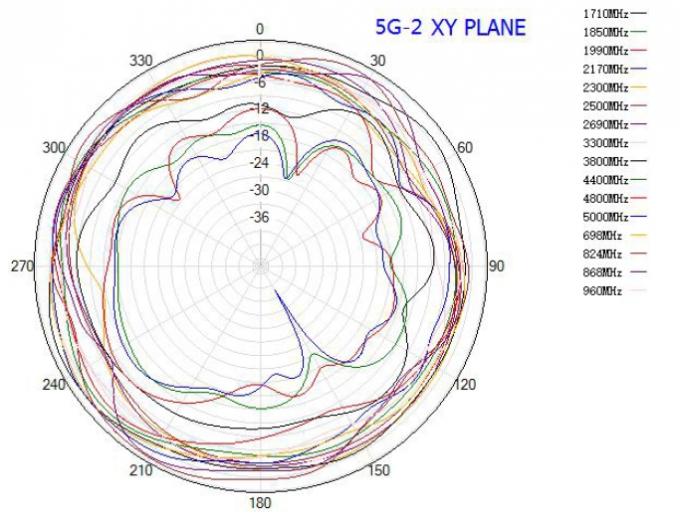

5G NR Antenna MIMO*4Frequency Range698-960MHz/1710-2690MHz/ 2900-3800MHz
V.S.W.R<3.0
PolarizationLinear
Gain4dBi (Typ.)
Impedance509





Product Details



Working frequencyGPS L1 L2 L5
Impedance50Ω
Gain4 dbi
Power Capacity5W
Operating temperature-40℃~85℃
Storage temperature-20℃~40℃

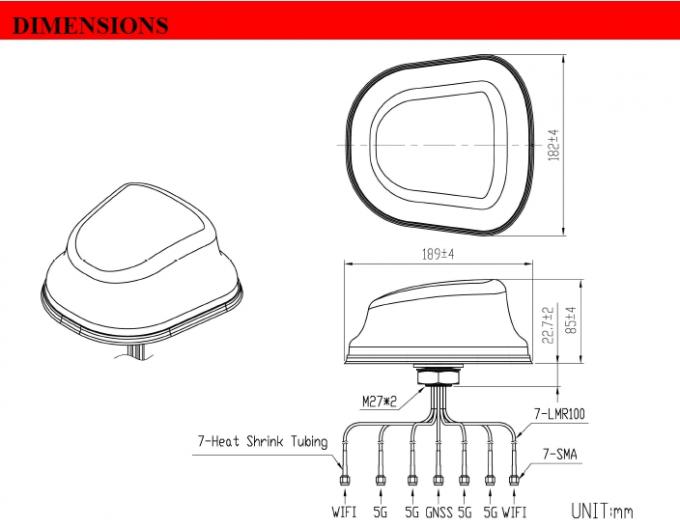

Size10*108mm
Band width100 MHz
Lightning ProtectionDC ground



Xiamen Lineyi Antenna & Connectors has been engaged in R&D and marketing of 5G/4G antennas, Wi-Fi antennas, GPS antennas series, 5.8G antennas for aerial photography drone and other types of antennas as well as smart card connectors series for over 20 years with rich experience in the field.



  1. Our three production bases are located in Dongguan and Ningbo with 400 employees in total. Factories covers an area of 50000 square meters. we have first-class engineer and service team, production lines are well equipped with state- of- the- art automatic machines.Good facilities, rapid response are excellent quality control throughout all stages of production ensure our customers’ satisfaction. Quality products and thoughtful service have been brought us high reputation at home and abroad.
  2. Warmly welcome OEM/ODM. We are committed to createing high-end quality with competitive price.
  3. Besides antennas and connectors, fstarting from this year, we also distribute some automatic assembly machines for electrical components.
  4. If you are interested in any of our items, or have a customized order to fulfill, please feel free to contact us.

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
