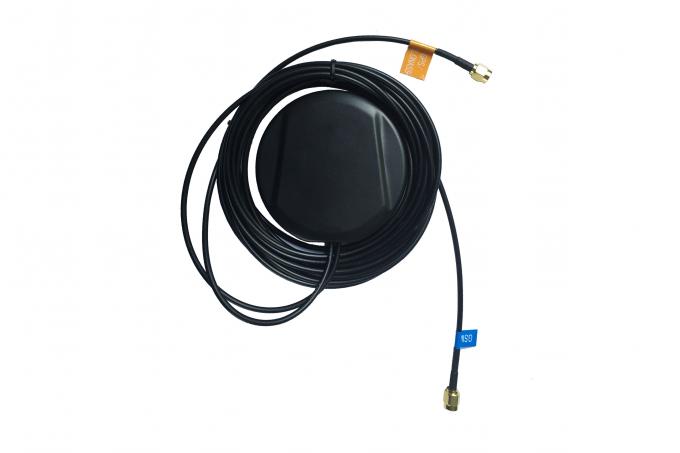

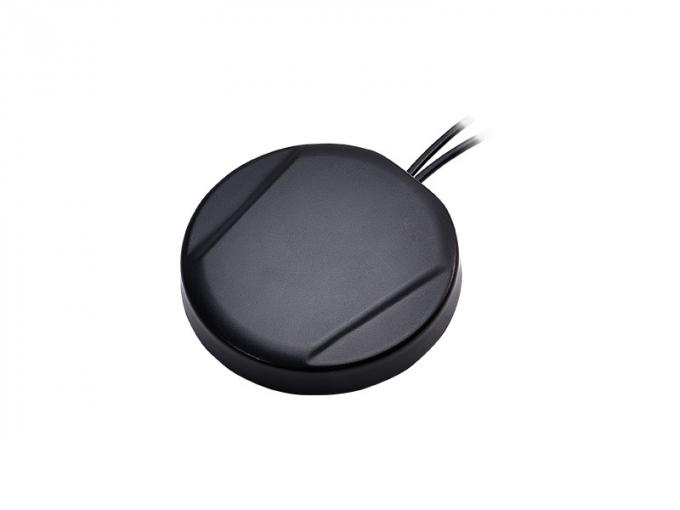

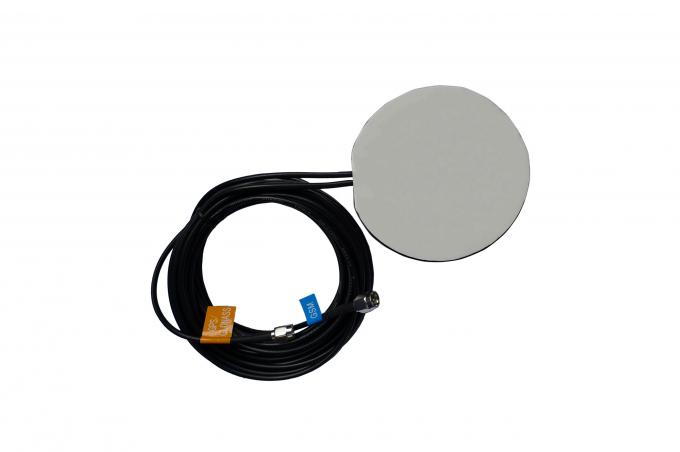

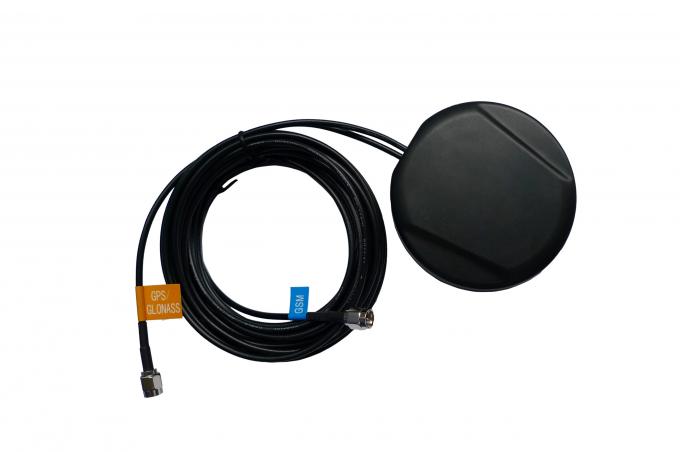

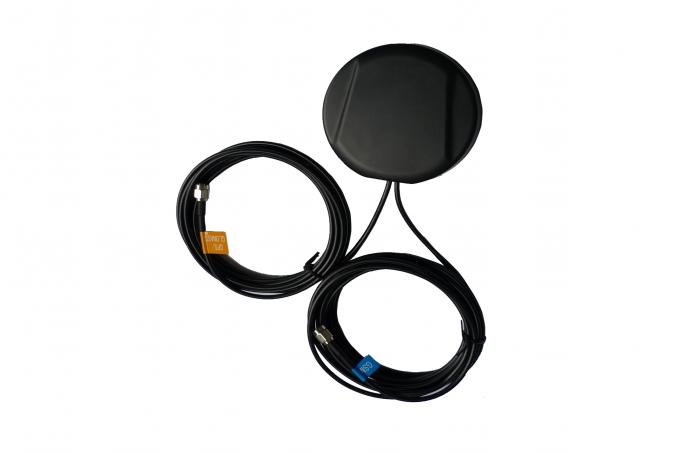

D80x15mm Round Adhesive Type Combo GSM GPS GLONASS Antenna

Product Detail

D80*15mm Round Adhesive Type Combo GPS GSM GLONASS Antenna



Specification



Dielectric Antenna

GPS Frequency

1575.42 MHz±3 MHz

GLONASS Frequency

1602-1610 MHz

Compass Frequency

1561 MHz

V.S.W.R

1.5:1

Band Width

±5 MHz

Impedance

50 ohm

Polarization Type

R.H.C.P

LNA/Filter

LNA Gain(w/o cable)

28±2dB Typical

Noise Figure

1.5 dB

DC Voltage

2.2~5 V

DC Current

5~15 mA

GSM Antenna





Frequency

824-894 MHz/1710-1990 MHz

880-960 MHz/1710-1990 MHz

1920-2170 MHz

V.S.W.R

2.0:1

Band Width

±5 MHz

Impedance

50 ohm

Gain(w/o cable)

2 dBi

WIFI Antenna

Frequency

2400-2500 MHz

V.S.W.R

2.0:1

Band Width

100 MHz

Impedance

50 ohm

Gain(w/o cable)

3 dBi

Mechanical

Mounting

Magnetic/Adhesive/Screw

Housing

Black

Cable

RG174 3m or others

Connectors

SMA/MCX/SMB/BNC or others

Environmental

Working Temp

-40℃~+85℃

Relative Humidity

55%~75%RH

Waterproof

IP67



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
antenna manufacturer,outdoor indoor antennas,magnetic antennas,rubber antenna,supply 5g antenna,lte 4g antenna,
2.4G 5.8G dual band antenna,wifi indoor antenna,433Mhz 868Mhz 915Mhz antenna,cable length and connectors can be customized according to requirements

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
