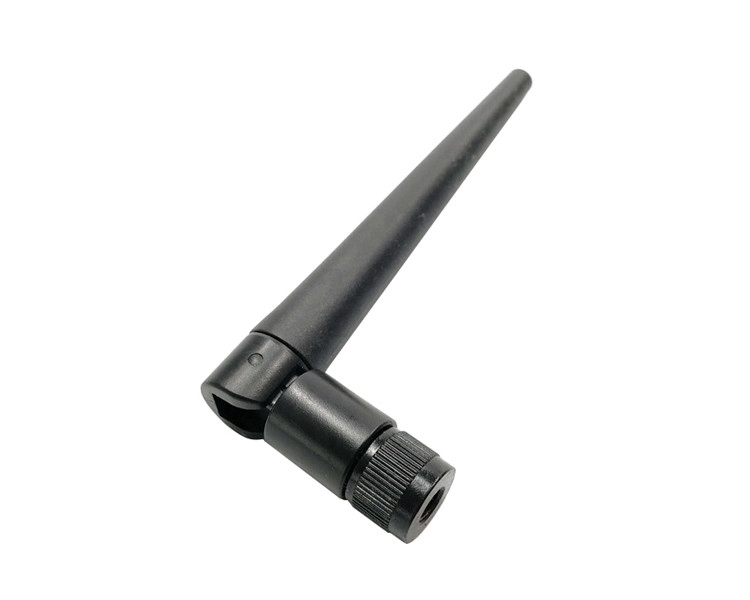

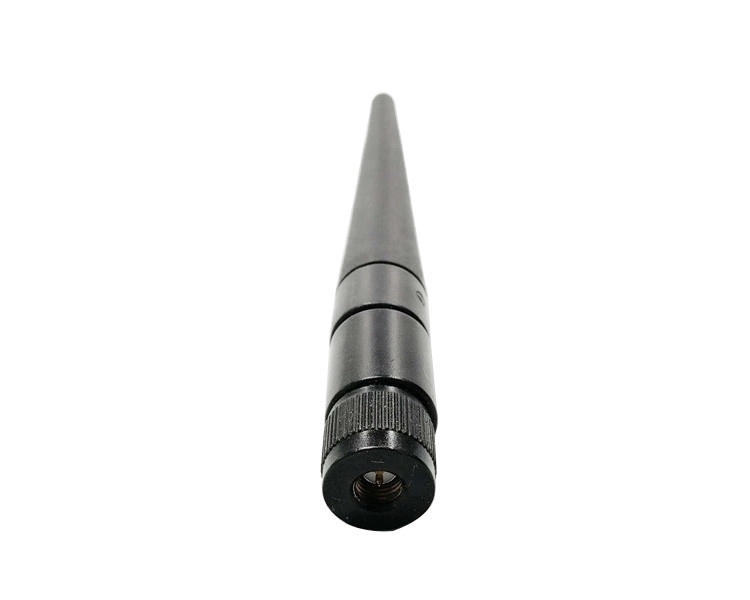

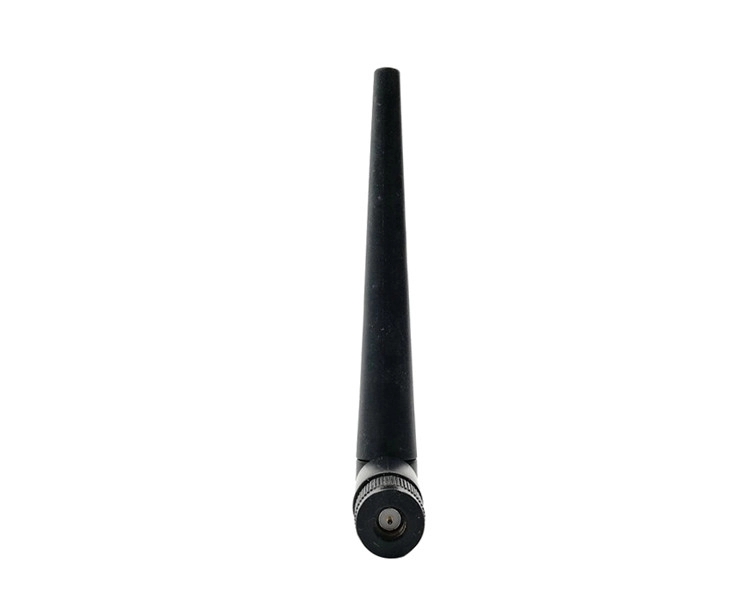

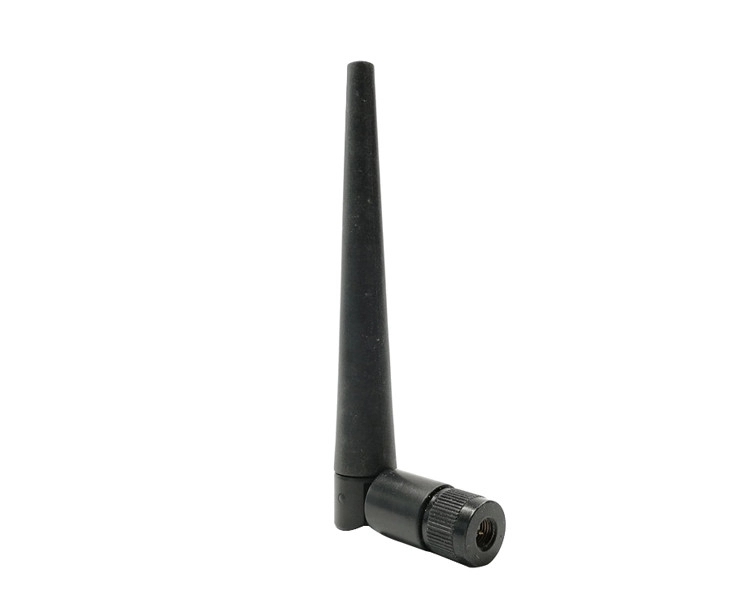

900 - 1800MHz 140mm GSM GPRS SMA Connector Antenna

Product Detail

900mhz-1800mhz 140mm GPRS GSM SMA Antenna





Product Description



Name

GSM Rubber Antenna Wtih SMA Cable

Center Frequency:

824~960/1710~2170MHz

Gain

3dbi

V.S.W.R

≤1.9

Connector

SMA Male bnc,Or Customized

Antenna Length

140MM

Radiation

Omni-directional

Mounting

Screw

Operating Temperature

-40℃ to 85℃

Storing temperature

-40℃ to 70℃

Impedance

50Ω

Maximum input power

50W

Polarization

Vertical



Main


2.4g GSM Wifi LTE 2g 3g 4g 433mhz 868mhz External Rubber Duck Antenna 2dBi 3dBi 5dBi 7dBi 9dBi Wifi Antenna
Our gsm antennas can be made in different gains and frequency, if you need, we can accept customized.
Our gsm antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.
We can also produce wifi antennas, indoor or out door panel antennas, patch antenna, sucker antenna and so on.
If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product,0
please contact our sales deparment and get more details.


FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
