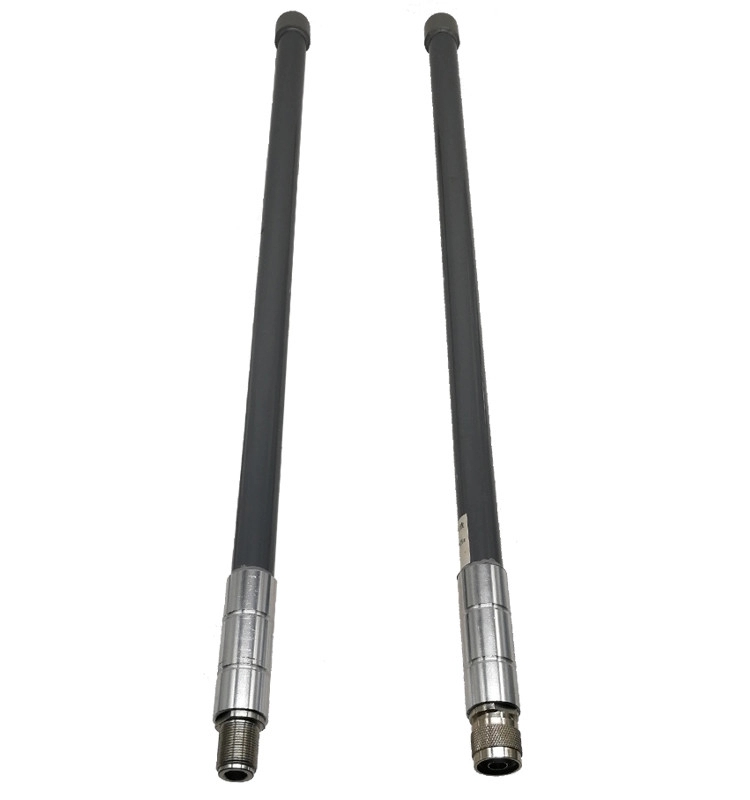

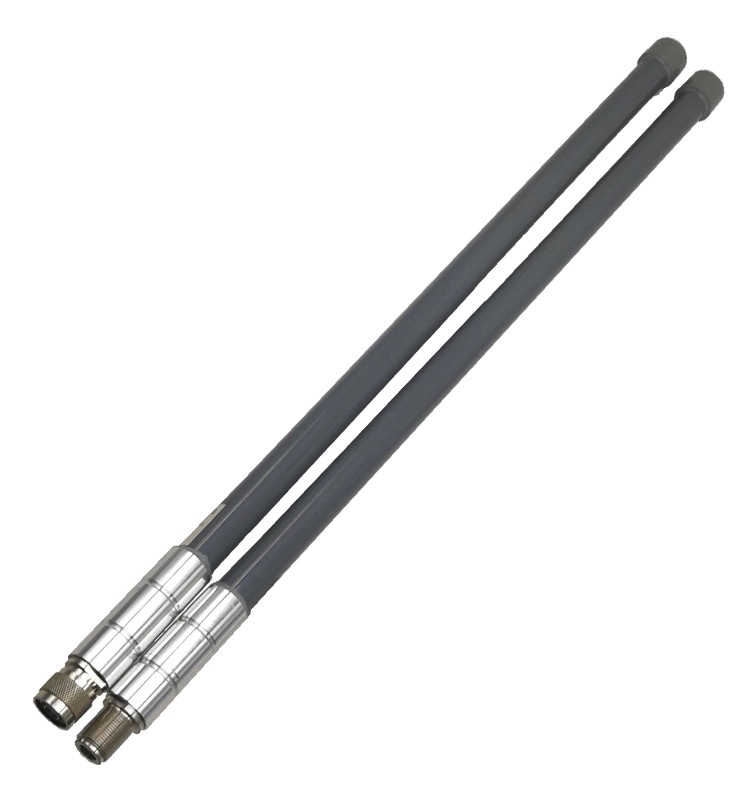

8dBi High Gain 2400 - 2500MHz Fiberglass 2.4 GHz WiFi Antenna

Product Detail

High Gain 8dBi 2400-2500MHZ Fiberglass 2.4GHz WiFi Antenna





Specifications



Electrical Characteristics

Frequency Range (MHz)

2400-2500 MHz

Gain (dBi)

8

Horizontal Beamwidth (°)

360

VSWR

≤1.5

Input Impedance (Ω)

50

Maximum Power (W)

50

Lightning Protection

DC grounding

Mechanical Characteristics

Connector type

Type N Male or Type N Female

Material

Fiberglass

Rated Wind Velocity

60M/S

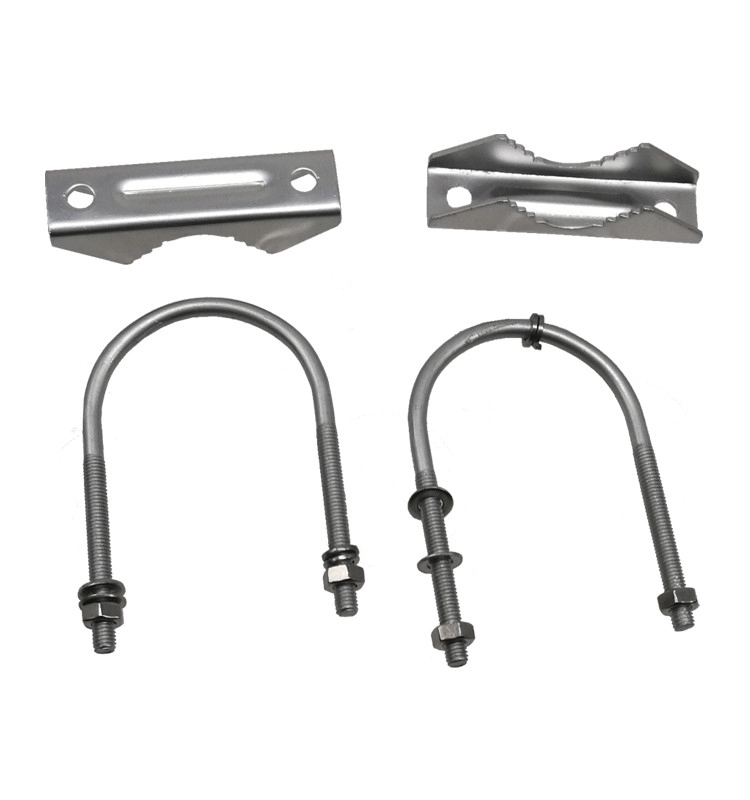

Mount way

Pole-holding

Dimensions (mm)

Ø22*525mm

Weight (g)

177

Environmental Characteristics

Noise Factor (dBi)

≤1.5

Operating Temperature (℃)

-30-+60°C

Relative Humidity

Up to 95%

ROHS Compliant

yes



Main


3G, Car Antenna, Hexagonal Antenna, Yagi Antenna, , Antenna, Composite Antenna, Patch Panel Antenna, Digital Mobile TV Antenna,
Signal Shielding Antenna, Digital Modular Antenna, Anti-theft Antenna, WIFI Antenna, GPRS Antenna, Wireless Router Antenna, Wireless AP Antenna, CDMA800,
CDMA2000, 2.4 G (7DB 9DB 11DB 12DB); omnidirectional fiberglass antenna, plate antenna, Yagi antenna, log periodic antenna;
and other accessories around the antenna we can provide different type wifi antennas of different gain.

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
