824 - 960MHz 1710 - 1990MHz 3dBi GSM Mini Patch Antenna With 3M Adhesive

Product Detail

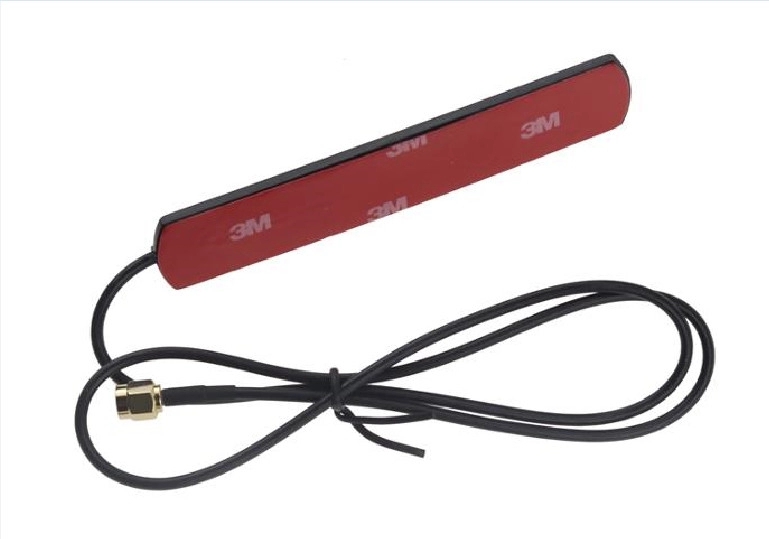

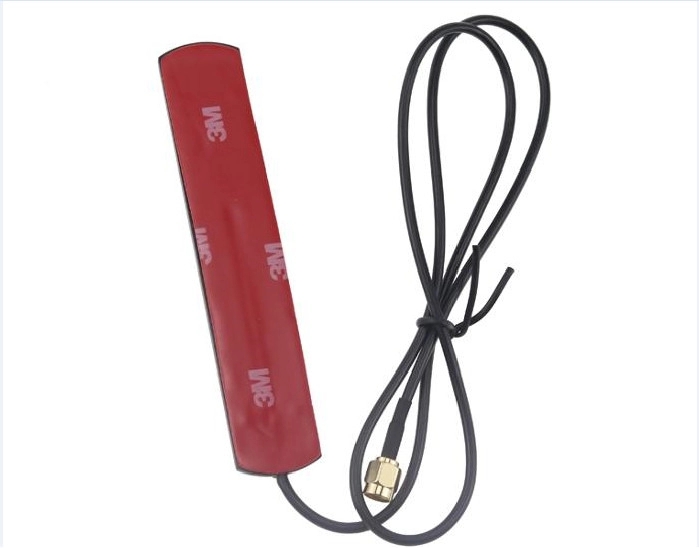

824-960MHz 1710-1990MHz 3dBi Mini Patch GSM Antenna With 3M Adhesive





Specification



Electrical Specifications

Product Model

RCM-SN-GSM-3A

Frequency Range

824-960/1710-1990MHz

Gain

3.5±0.5dBi

VSWR

≤ 1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Vertical Half Power Angle

60±15º

Max Input Power

50W

Connector Type

SMA, RP-SMA or Customized

Lightning Protection

DC Ground

Mechanical Specifications

Cable Type

RG174 or Customized

Cable Length

3m or Customized

Antenna Weight

60g

Antenna Size

Φ115x21x5mm

Working Temperature

-40℃~65℃

Rubber Material

ABS

Antenna Color

Black



Main



Common Frequency: 4G/ 3G/ 2.4G/ GSM/ CDMA/ RFID/ GPS/ 1.2G/ 3.5G/ 5.8G/ Lora/ 450MHz/ 433MHz, etc.
Antenna Gain: Higher the Antenna gain, the signal amplification better.
Antenna Interface: Common interface have N, SMA, FME, IPEX, F, IEC, etc.
We can make :VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna,
3G (850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz),GPS+BD(1575+1561), GPS+GSM+4G Antenan ,
4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band

Factory Hot Sale 824-960MHz 1710-1990MHz 3dBi Mini Patch GSM Antenna with 3M Adhesive



FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.

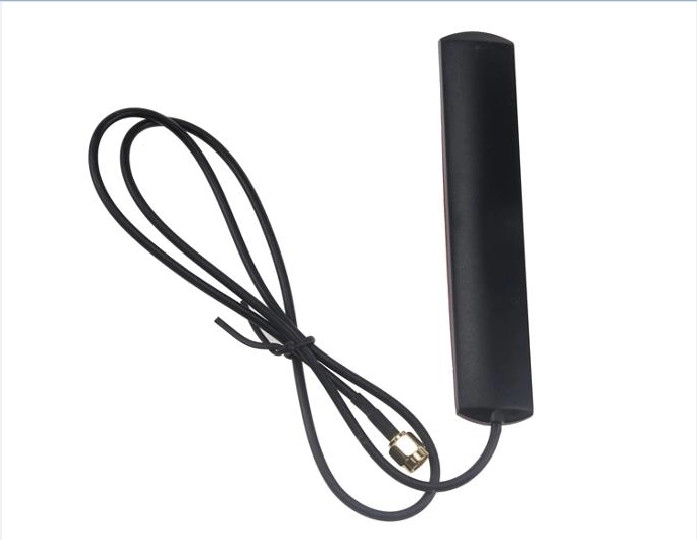

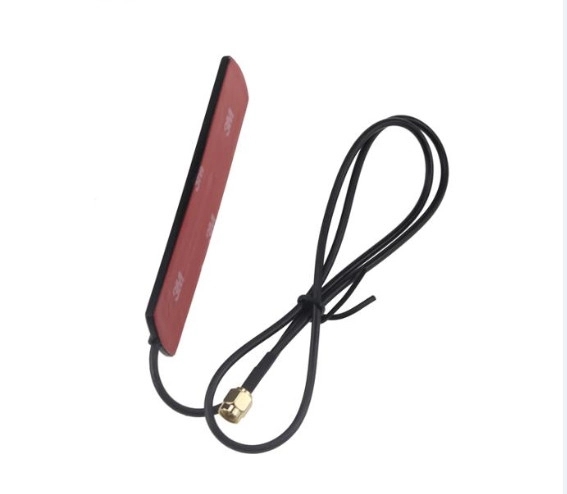

824 - 960MHz 1710 - 1990MHz 3dBi GSM Mini Patch Antenna With 3M Adhesive
