6dbi Wireless Receiving And Transmitting 433MHz Antenna , 433MHz SMA Antenna

Product Detail

433M wireless receiving and transmitting antenna



Product Description



JB024 Antenna 433-470MHZ/ Custom 6DBI gain, BNC interface, high speed stability.

Xiamen Lineyi Antenna & Connectors has been engaged in R&D and marketing of 5G/4G antennas, Wi-Fi antennas, GPS antennas series, 5.8G antennas for aerial photography drone and other types of antennas as well as smart card connectors series for over 20 years with rich experience in the field.

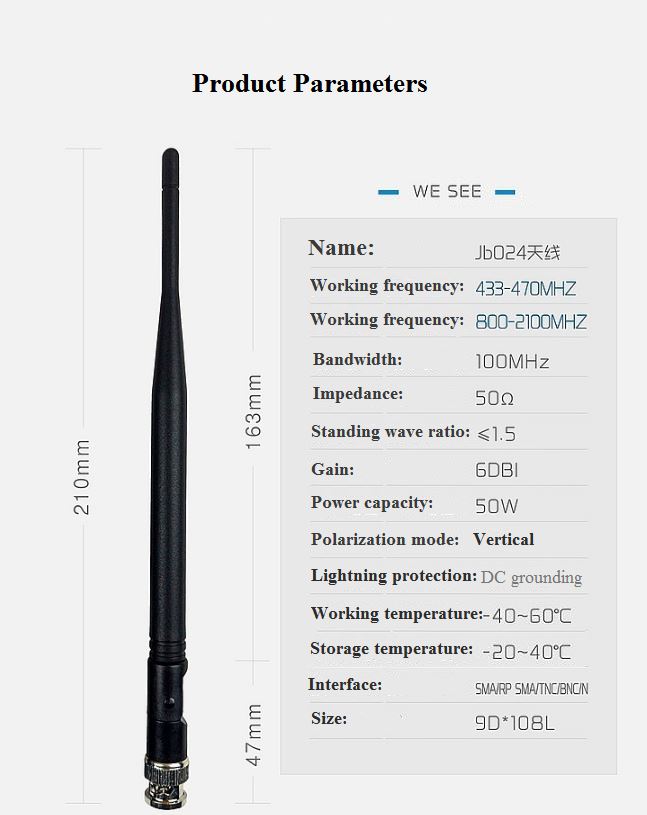

Product Features

  • Name: 433M wireless receiving and transmitting antenna
  • Working frequency: 433~470MHz,,800~2100MHz
  • Impedance: 50Ω
  • Standing wave ratio: ≤1.5
  • Gain: 6dbi
  • Power Capacity: 50W
  • Polarization mode: Vertical
  • Lightning Protection: DC ground
  • Operating temperature: -40℃~60℃
  • Storage temperature: -20℃~40℃
  • Interface: RP SAM/SMA/TNC/BNC/N
  • Size: 9D*108L
  • Band width: 100 MHz

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.


6dbi Wireless Receiving And Transmitting 433MHz Antenna , 433MHz SMA Antenna
