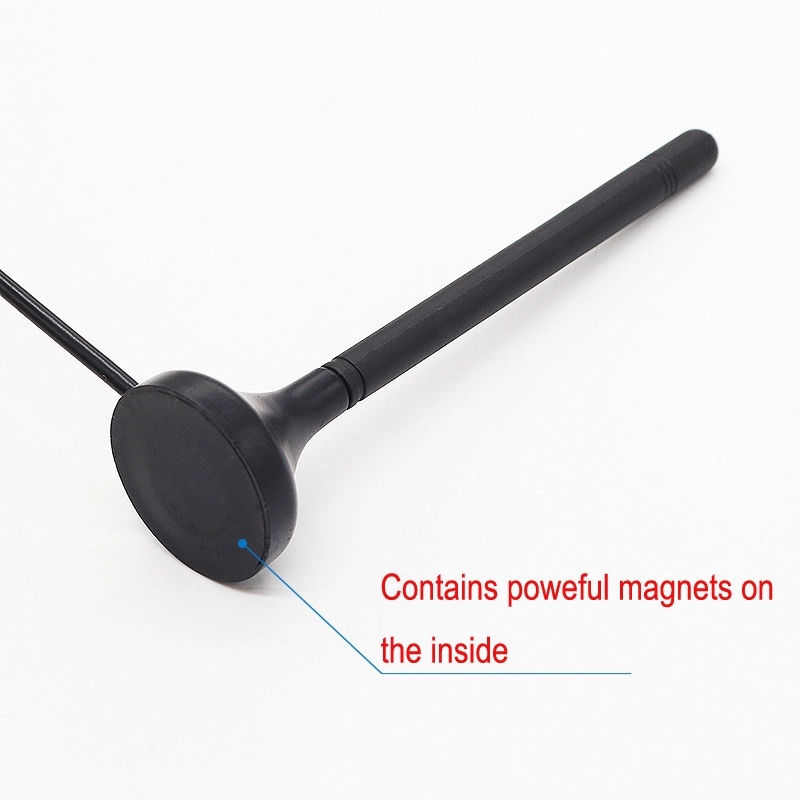

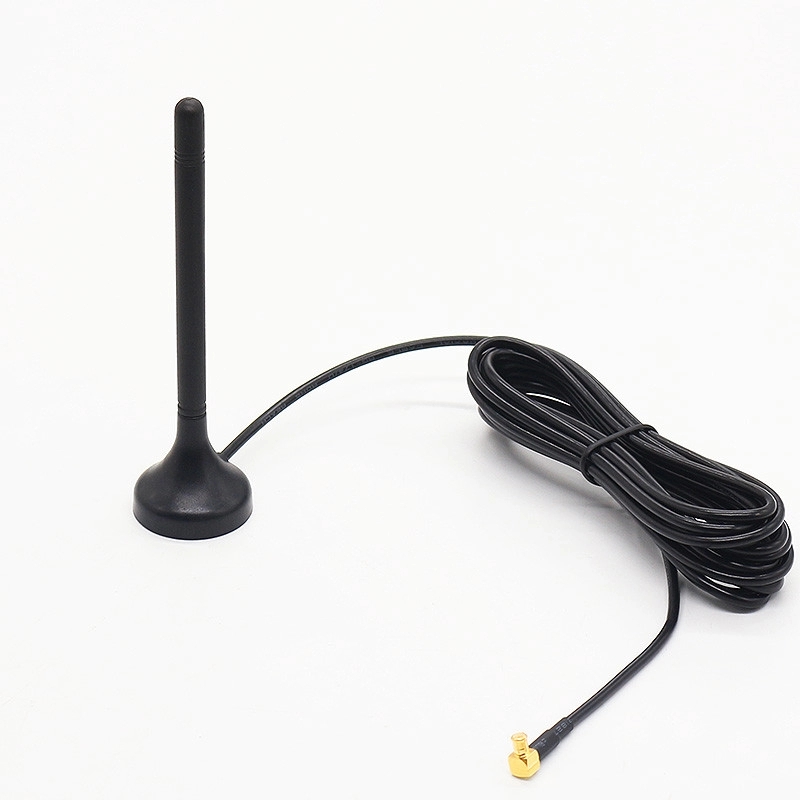

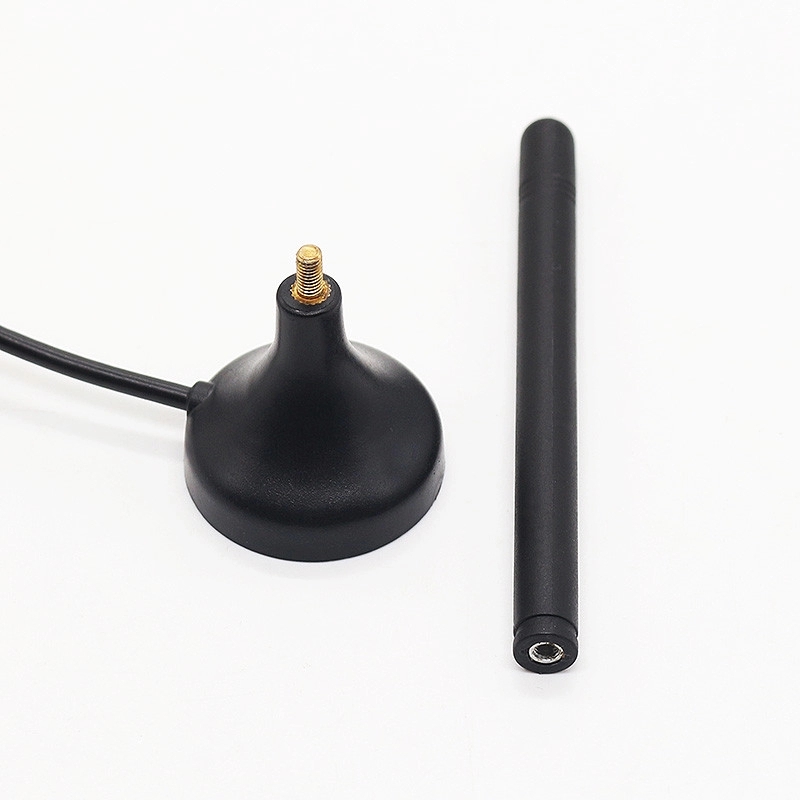

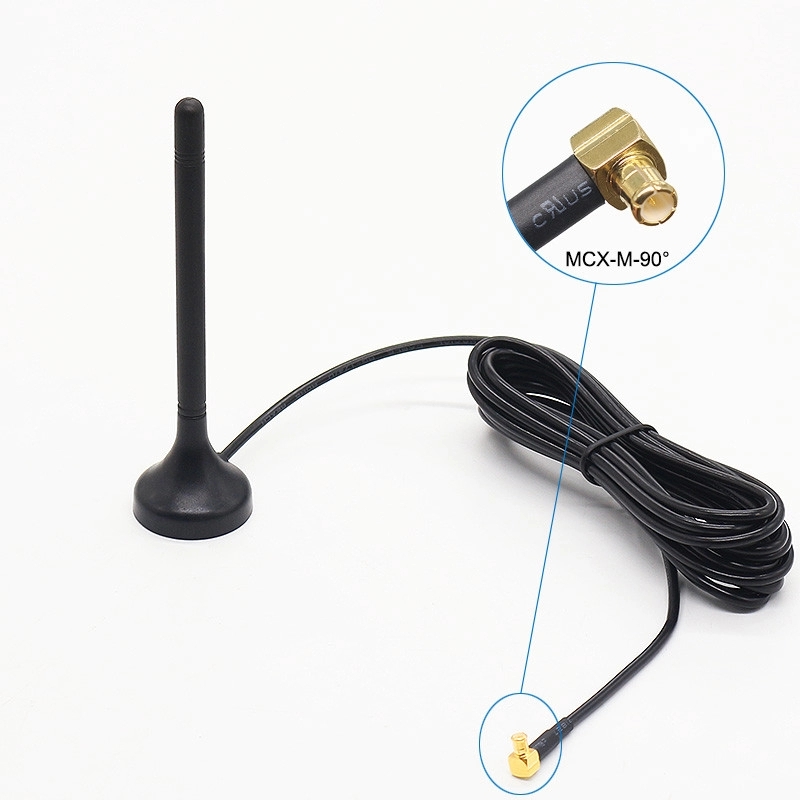

6dBi Magnetic Chuck GSM Antenna 824 - 1710MHz With MCX-M 90 Degree Connector

Product Detail

Outdoor 3GHz GSM Magnetic Chuck Antenna 824-1710MHz 6dBi With MCX-M 90 Degree Connector Antenna





Product Description



Electrical Specifications

 Frequency range (MHz)

824-960/1710-1710MHz

  Gain (dBi)

6

  VSWR

≤2.0

  Input Impedance (Ω)

50

  Coaxial cable length (M)

1~3M or Requested

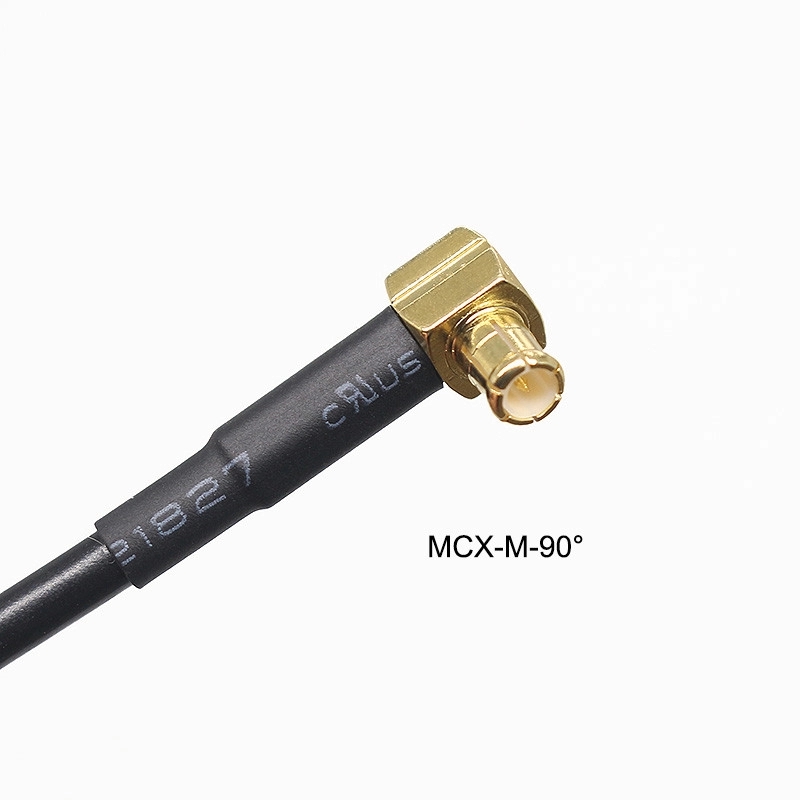

  Connector

MCX- Male 90° or request

   Mechanical Specifications

  Total length/rod length(mm)

110

  Disk diameter(mm)

Φ30

  Operating temperature(℃)

 -40~60

  Radome color

 Black





Main



3G, Car Antenna, Hexagonal Antenna, Yagi Antenna, , Antenna, Composite Antenna, Patch Panel Antenna, Digital Mobile TV Antenna, Signal Shielding Antenna, Digital Modular Antenna

We can also produce wifi antennas, indoor or out door panel antennas, patch antenna, sucker antenna and so on

We can make :VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna, 3G (850-900-1800-1900-2100mhz) Antenna ,

 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz),GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz)

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
