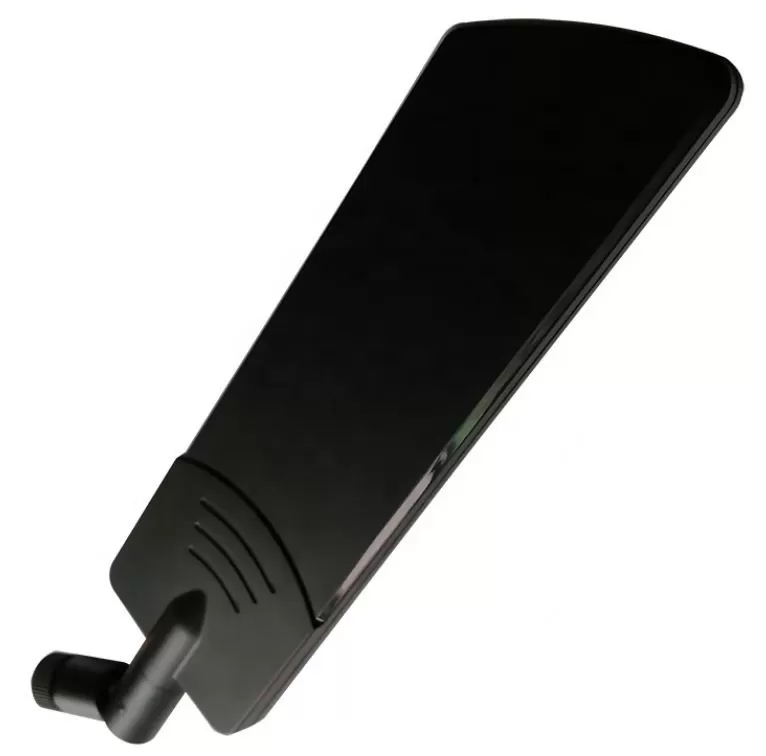

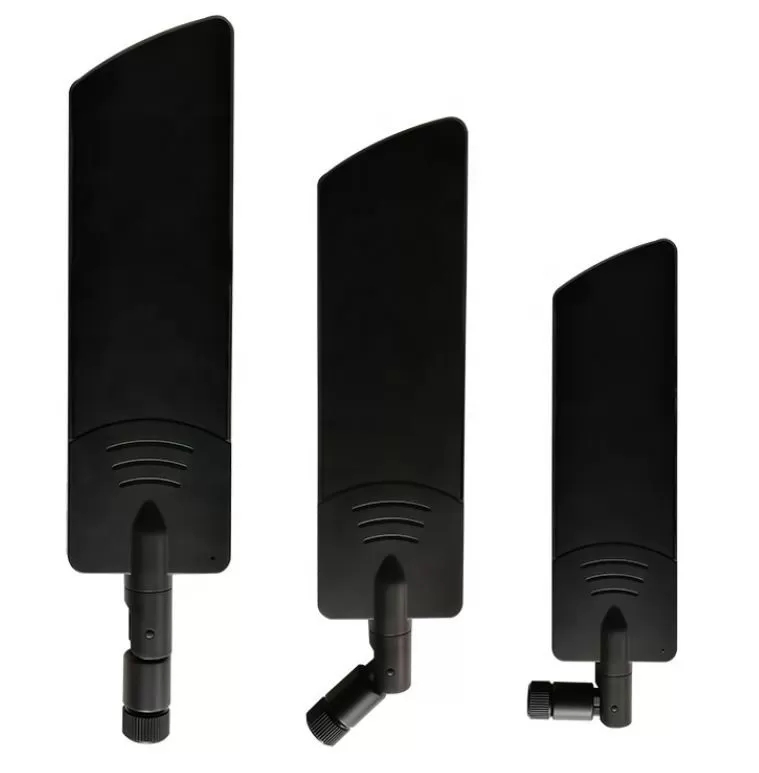

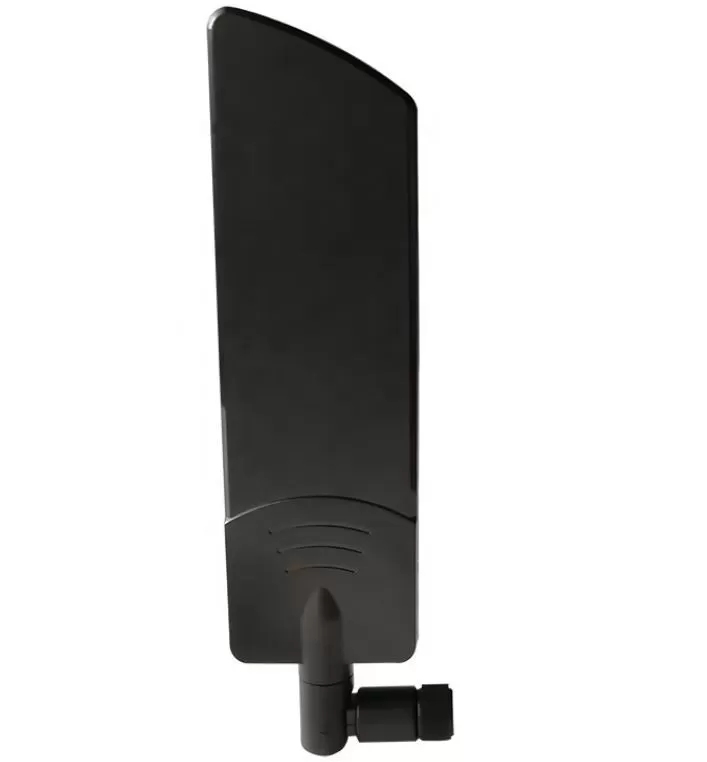

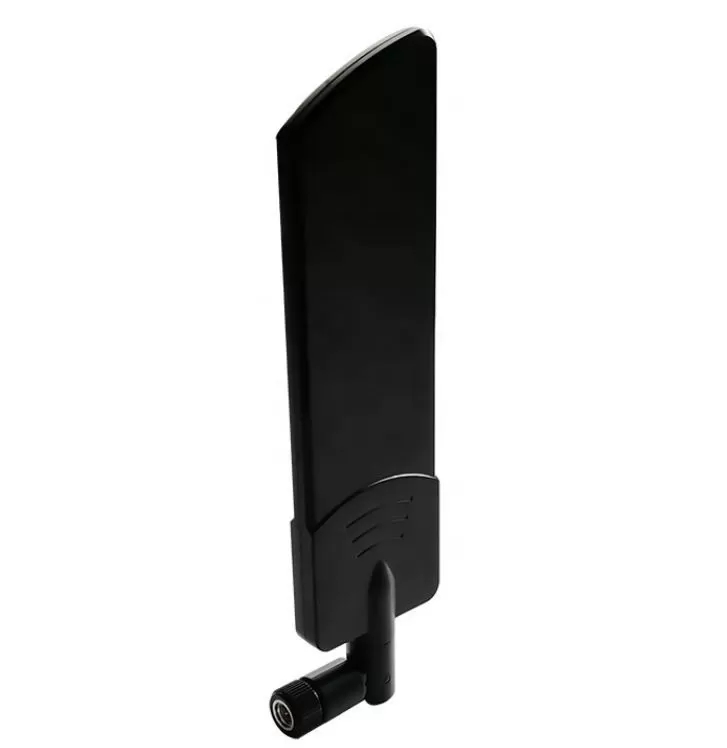

2G 3G 4G 5G Lte External Omni WiFi Antenna For Router

Product Detail

2G 3G / 4G/ 5G Lte External Omni Communication Antenna wifi antennas for router



Product Description



Our three production bases are located in Dongguan and Ningbo with 400 employees in total. Factories covers an area of 50000 square meters. we have first-class engineer and service team, production lines are well equipped with state- of- the- art automatic machines.Good facilities, rapid response are excellent quality control throughout all stages of production ensure our customers’ satisfaction. Quality products and thoughtful service have been brought us high reputation at home and abroad.

Product Features

  • Name: 2G 3G / 4G/ 5G Lte External Omni Communication antenna wifi antennas for router
  • Working frequency: 698-960/1710-2170MHz (customizable)
  • Impedance: 50Ω
  • Standing wave ratio: ≤2.0
  • Gain: 3.4dbi





Product Details

Working frequency170~240MHz/470~862MHz
Impedance50Ω
Gain3.4dbi
Suppiler(Voltage, Consumption electric)5V 20mA
Operating temperature-40℃~85℃
Storage temperature-20℃~85℃
PolarizationOmni Directional
Dimension193*44*13mm

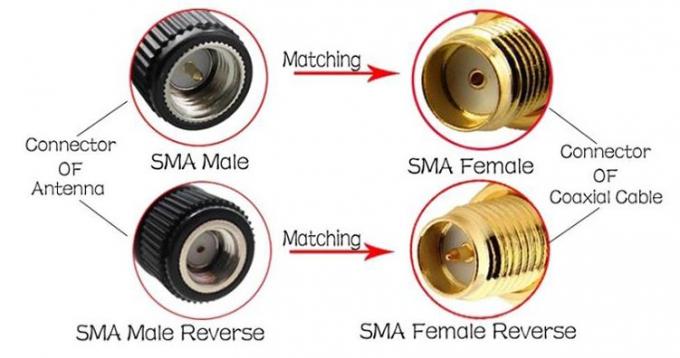

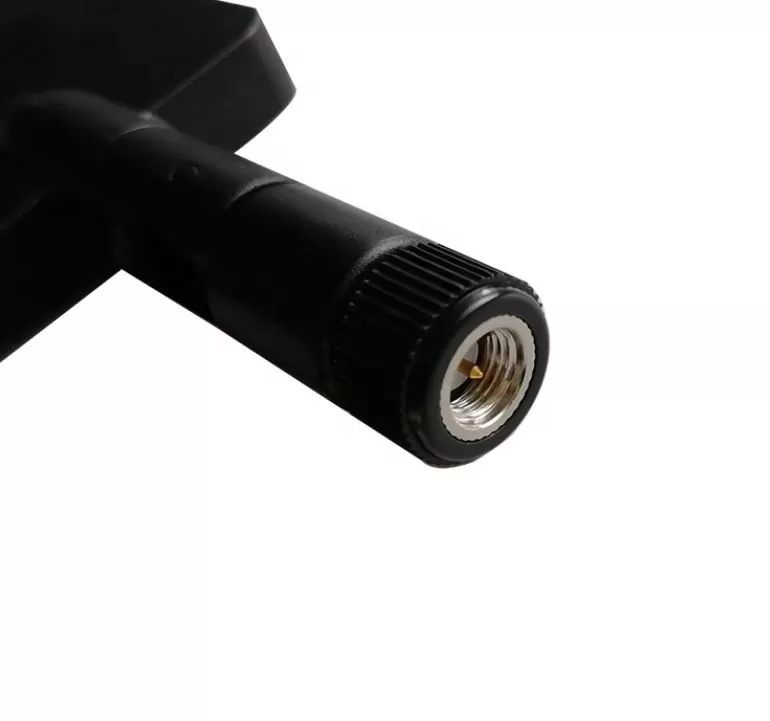

Connect TypeSMA-j OR OEM (customizable)

Our antennas in the open environment can make WIFI signal transmission distance longer, provide better WIFI penetration ability, data reception is more smooth, the coverage is wider.







The ultra-long antenna supports multi-dimensional free rotation, and users can adjust their usage habits and signal strength to improve signal sensitivity and enjoy high speed at any time.



FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.

Polarization:
Omni Directional


2G 3G 4G 5G Lte External Omni WiFi Antenna For Router
