DC Ground RP SAM 2700MHz 5dbi LTE 5G Antenna

Product Detail

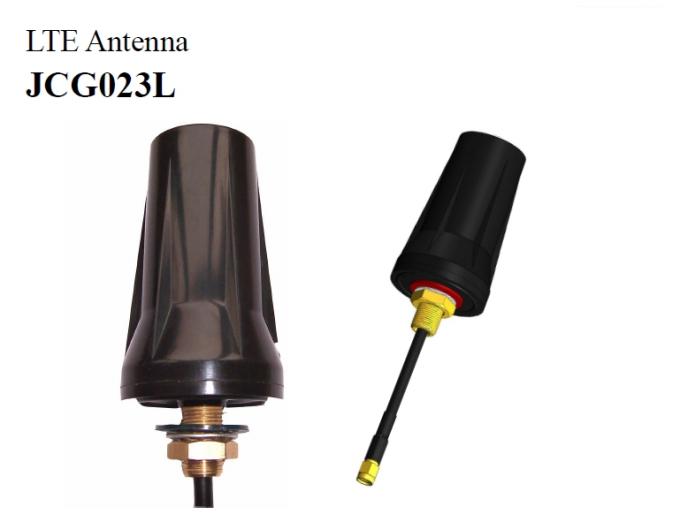

LTE Antenna JCG 023L



Product Description



ItemSpecifications
AntennaFrequency Range698-960/1710-2690MHz
PolarizationLinear
Gain2dBi (Zenith)
V.S.W.R≤3.0
Impedance50Ω
MechanicalCableRG58 or others
ConnectorSMA or others
Radome MaterialABS
Mounting MethodScrew
EnvironmentalOperating Temperature-40℃~85℃
Relative HumidityUp to 95%
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant



Product Details

NameLTE Antenna
Working frequency700~2700MHz
Impedance50Ω
Standing wave ratio≤1.5
Gain5dbi
Power Capacity5W
Polarization modeVertical
Lightning ProtectionDC ground

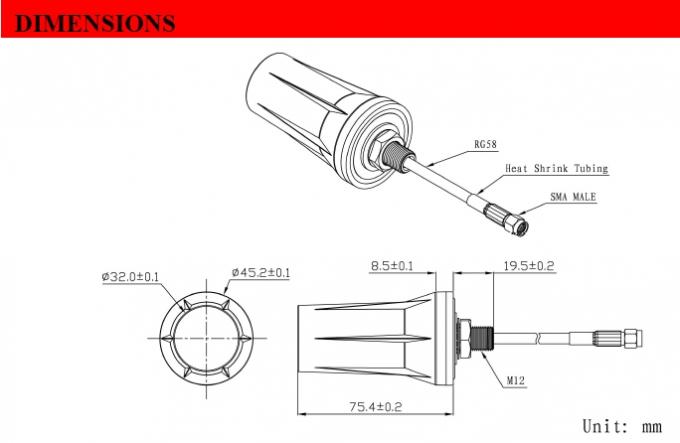

Size10*108mm
Band width100 MHz

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
